Triple Liwin L35 Radio 3W-Net Chain Actuator 230V ​L=2500<3750 Comunello Mowin

Comunello Mowin
Code: L35 230V RADIO 3W-NET
-25%
€ 626,18 € 834,90
Prices excluding VAT
You have chosen:
Are you looking for an actuator from the Comunello catalog that is not on our site? Contact us and ask for a quote.

- +

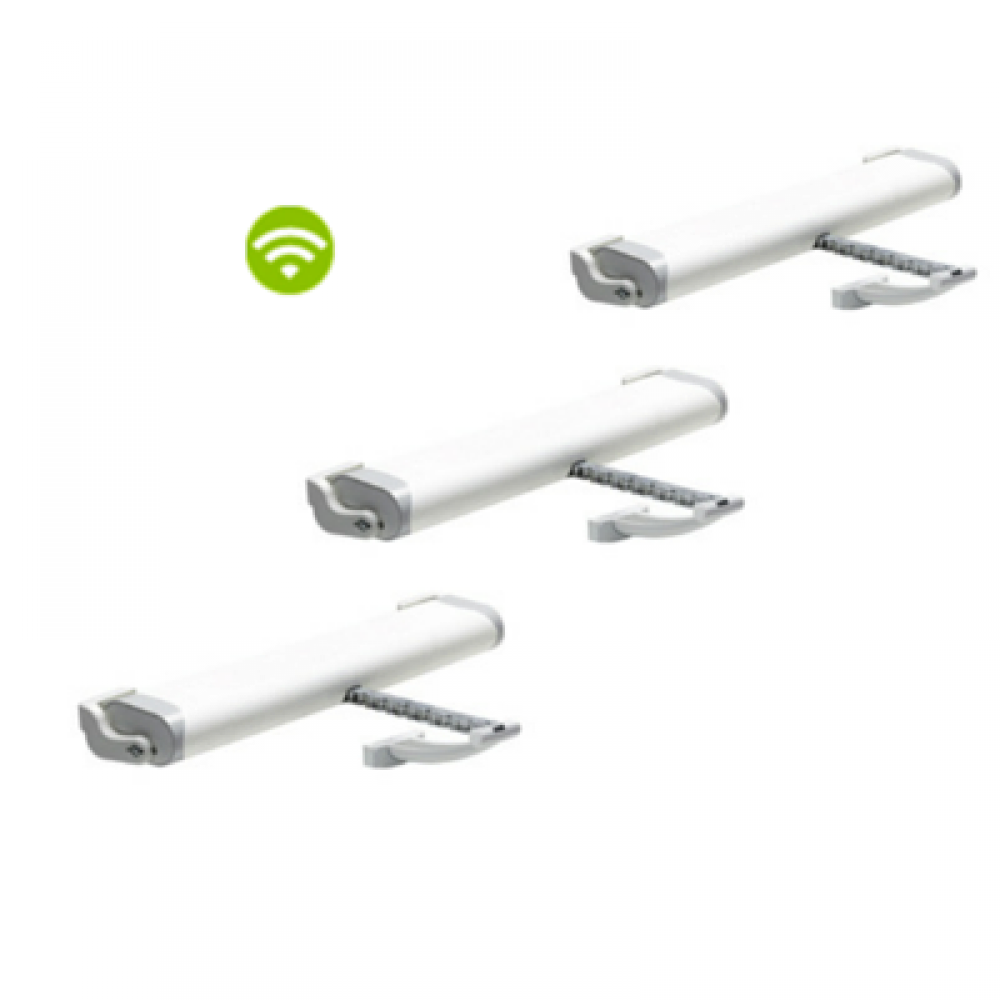

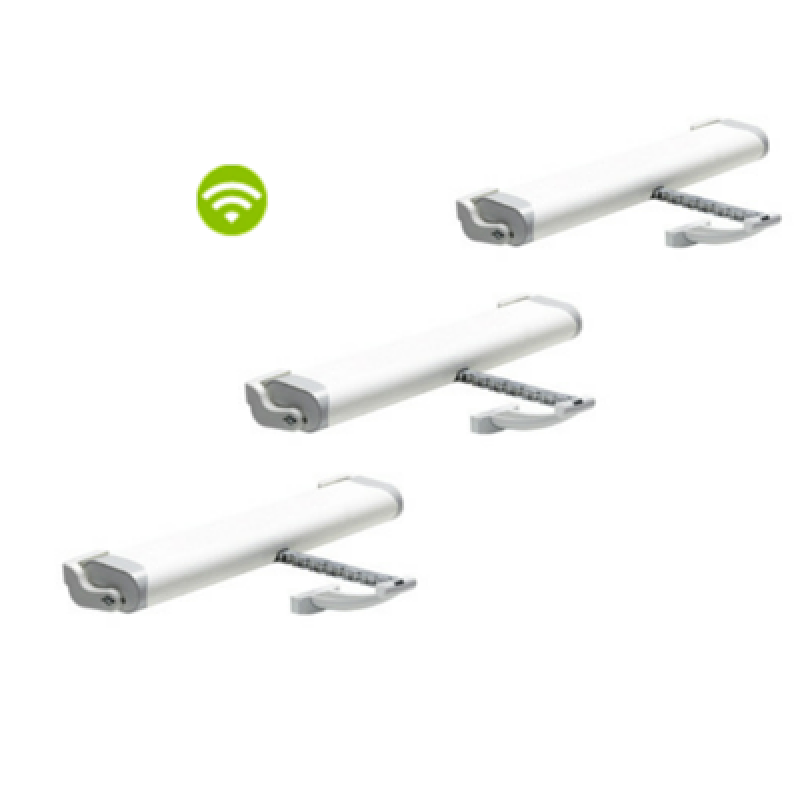

Triple Liwin L35 Radio 3W-Net Chain Actuator 230V ​L=2500<3750 Comunello Mowin
Liwin L35 RADIO 3W-Net 230V
​L= 2500 < 3750 mm


Triple chain actuator for opening and closing top-hung outward windows, shed, skylights and bottom-hung inward windows in wood, PVC and aluminium.

This is the 3W-Net version, an innovative communication system that ensures perfect movement control and coordination. No external coordination controller is required, and the connection is made via an RS485 serial port. These versions are suitable for use with unusually wide or heavy windows.

Remote control not included
Radio version prearranged for use with a radio control handset (434.15 MHz).
The remote control can be purchased separately on Windowo.

The box contains all the parts and equipment you need to make set up and connection as easy as possible.
The Liwin actuator range are in compliance with Directives EC (EMC, LVD and R&TTE directives) as amended.

Package contents: triple chain actuator provided with electric supply cable, support brackets, fixing brackets for top-hung and bottom-hung windows, drilling template included, multi-lingual user’s guide.

actuator openings Smart Comunello

Technical features:
  • Model: L35 230V 3W-NET;
  • VAC power supply: 230VAC;
  • Frequency 50Hz;
  • Service: S2 4min;
  • Thrust force: 350N x 3 x 0,7 = 735N;
  • Tension force: 350N x 3 x 0,7 = 735N;
  • Idle translation speed: 18 mm / s;
  • Degree of protection: IP44;
  • Double insulation AC: Yes;
  • VAC Power consumption: 0,19 A;
  • Power: 28 W;
  • Operating temperature: -5 ° / + 50 °;
  • Strokes available: 50 – 100 – 150 – 200 – 250 – 300 – 350 – 400 – 420 mm;
  • Stroke limit - resistance;
  • Soft Start / Soft Stop: Yes / Yes;
  • Obstacle detection: Yes;
  • Parallel connection: yes (max 30 actuators);
  • Synchronization: yes;
  • Dimensions: 390x38x73 mm.

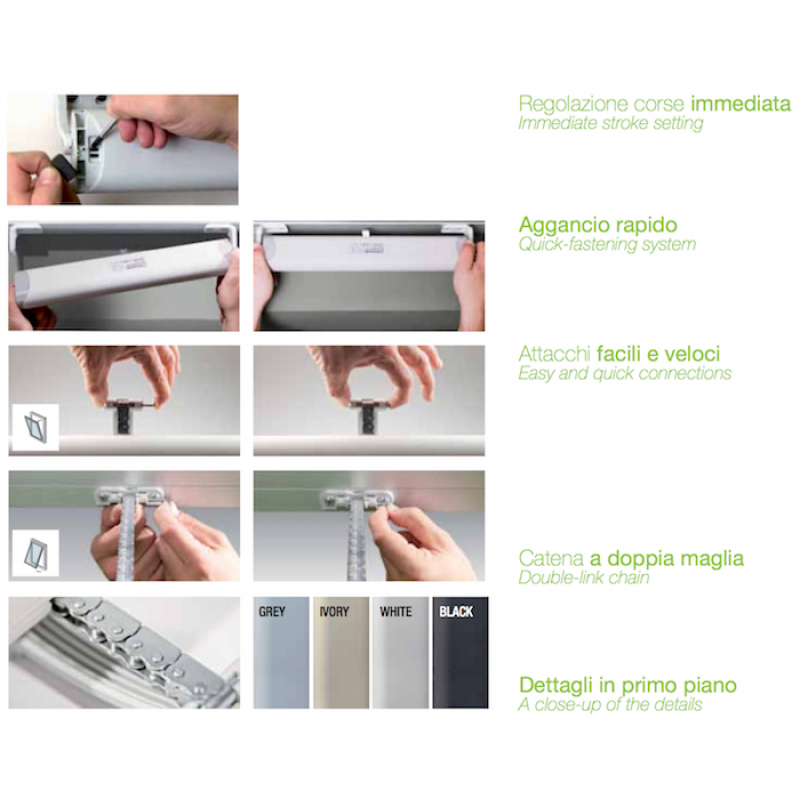

Liwin L35 actuator Comunello

Adjusting immediate races - Quick hitch.
easy and quick attacks - Double link chain - first floor details.

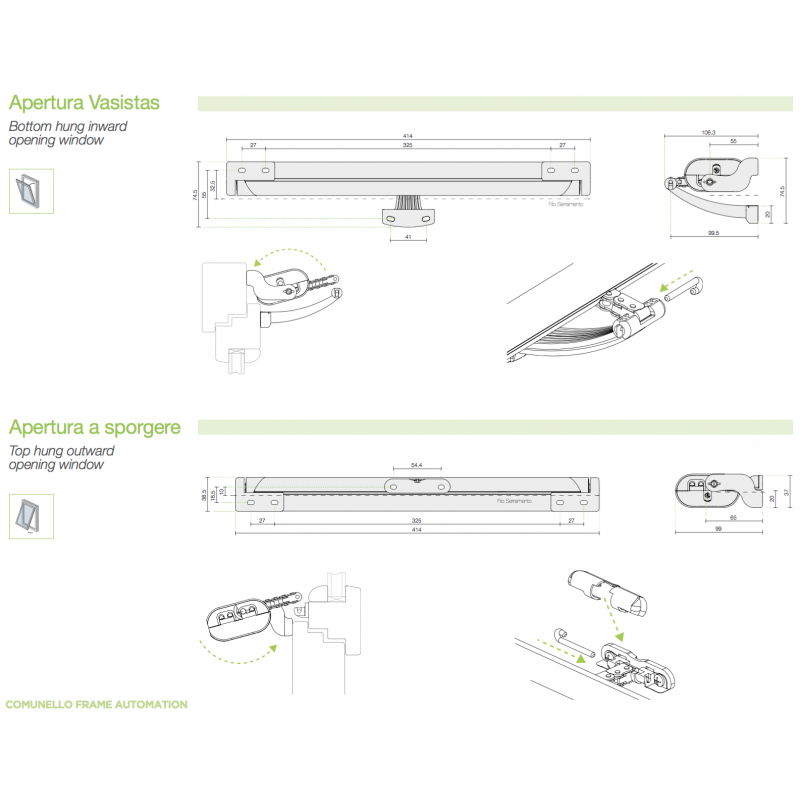

Applications Liwin actuator Comunello chain

Comunello Mowin

Comunello Mowin
The Mowin® project comes out of Comunello’s 45 years experience in mechanical opening systems for doors, windows and gates. The guarantee of high quality and durability associated with all Comunello products continues in the brand new Mowin® mechanical actuators, which, when combined with the fanatical attention was also devote to the development of  electronic parts and programming, enable us to offer products that are stable and yet extremely flexible, suitable for a broad range of applications for windows, domes, skylights, brise soleil blades, awnings and roller shutters. Contemporary styling that reflects the utmost attention to detail means that the Mowin® series of products have exactly what it takes to assume a benchmark role also in the field of home automations.

Window automation: a new challenge in the consolidation of our position as a top player with a high class Italian touch.
