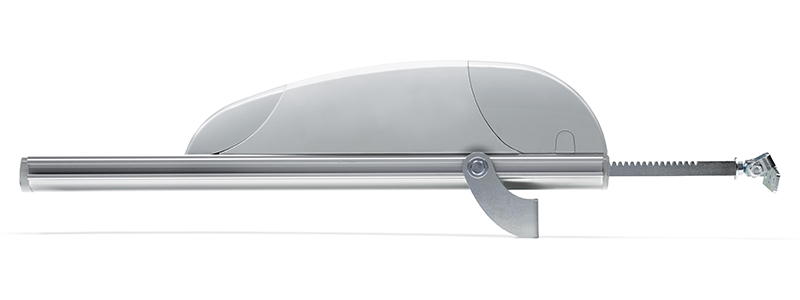

Rack Actuator Airwin A45 450N 24V Comunello Mowin

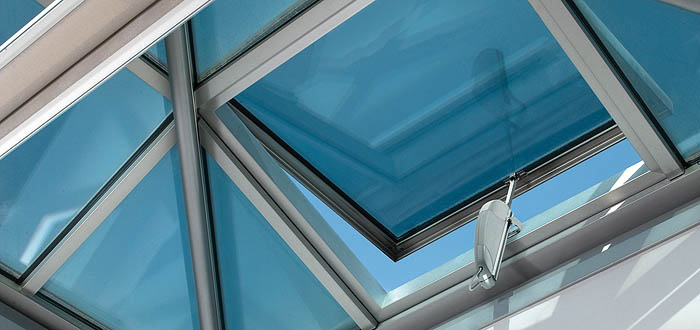

Comunello Airwin A45 24V - Electric rack actuator for opening and closing Sheds, skylights, sunshade blades and domes.
Inside the package you will find all the elements and tools that make assembly and connection operations with the electrical system simple.
The Airwin series actuators comply with the CE Directives (EMC, LVD and R&TTE Directive) and subsequent amendments.
The package contains: rack actuator with electric cable, anchoring bracket and adjustment screws, fixing bracket for top-hung windows and domes, multilingual instruction booklet.
Technical features Comunello Airwin A45 24V:
- Model: Airwin A45 24V;
- Power supply: 24V;
- Service: S2 4min;
- Push force: 450N;
- Pulling force: 450N;
- No-load translation speed: 10 mm/s;
- Degree of protection: IP44;
- Double insulation: Low voltage;
- Absorption: 1.5A;
- Power: 36W;
- Operating temperature: - 5° / + 50°;

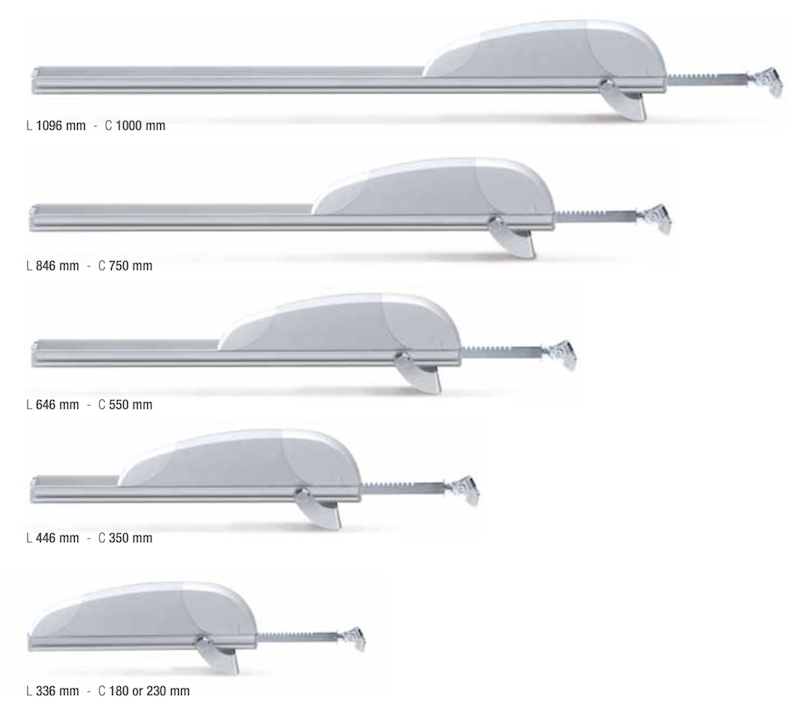

- Strokes: 180 – 230 – 350 – 550 – 750 – 1000 mm;
- Opening limit switch: by absorption;
- Closing limit switch: by absorption;
- Soft Start / Soft Stop: Yes / Yes;
- Obstacle detection: Yes;
- Parallel connection: Yes (max 30 actuators);
- Sync: No;

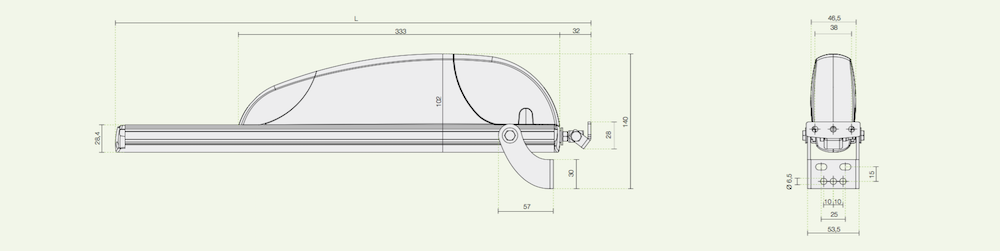

- Dimensions: 96 + stroke x 103 x 47 (excluding stroke 180) mm.
Comunello Mowin
The Mowin project was born from Comunello's 45 years of experience in the mechanical handling of doors and windows. The guarantee of high quality and durability, recognized on Comunello products, continues in the brand new Mowin electromechanical actuators thanks also to a careful development of the electronic and programming parts, offering stable and highly flexible products, suitable for multiple applications for windows, domes, skylights, sunscreen blades, curtains, shutters. A modern design with attention to all its details presents the Mowin series as a product capable of becoming the protagonist even in residential environments.
A new challenge, automation, to be protagonists with an all-Italian touch.
