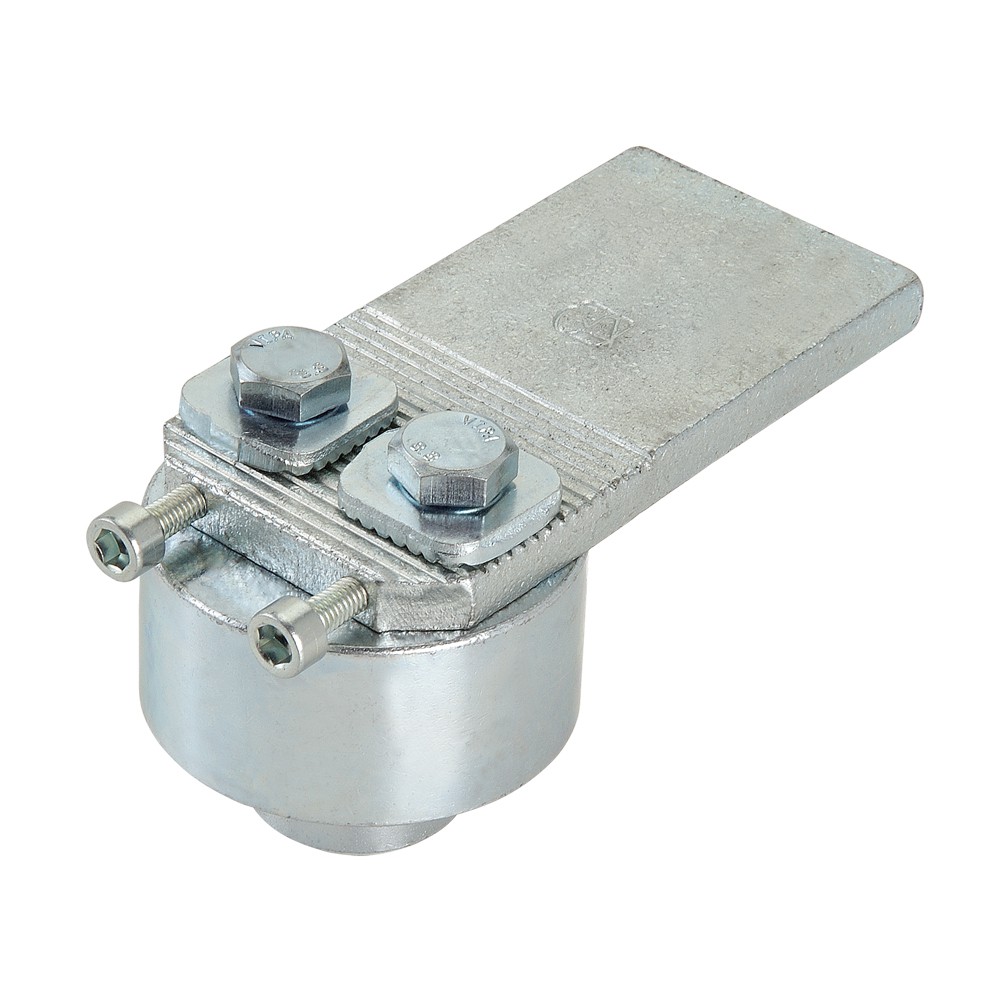

Hinge with Adjustable Bearing Large with Screws Swing Gate Combiarialdo
Hinge with large adjustable bearing with adjustment screws.
Swing gate accessory.
Features Adjustable Bearing Hinge:
- MM: large;
- Reg screws: M6;
- TE screws: M1.
Component to be welded: make a weld of suitable dimensions to support the forces in play and with suitable filler material. Adequately reinforce the areas of attachment to the door and/or the structure/frame.
Adjustable component: adjustment can be made with the accessory mounted.
Ball bearing: Single row radial ball bearing with sliding seals (2RS). Maintenance-free.
