Code Keypad with RFID Reader 57301 Opera 12/24 Vac/dc Backlit

Opera
Brands: Opera
Code: 57301
-20%
€ 298,79 € 373,49
Prices excluding VAT

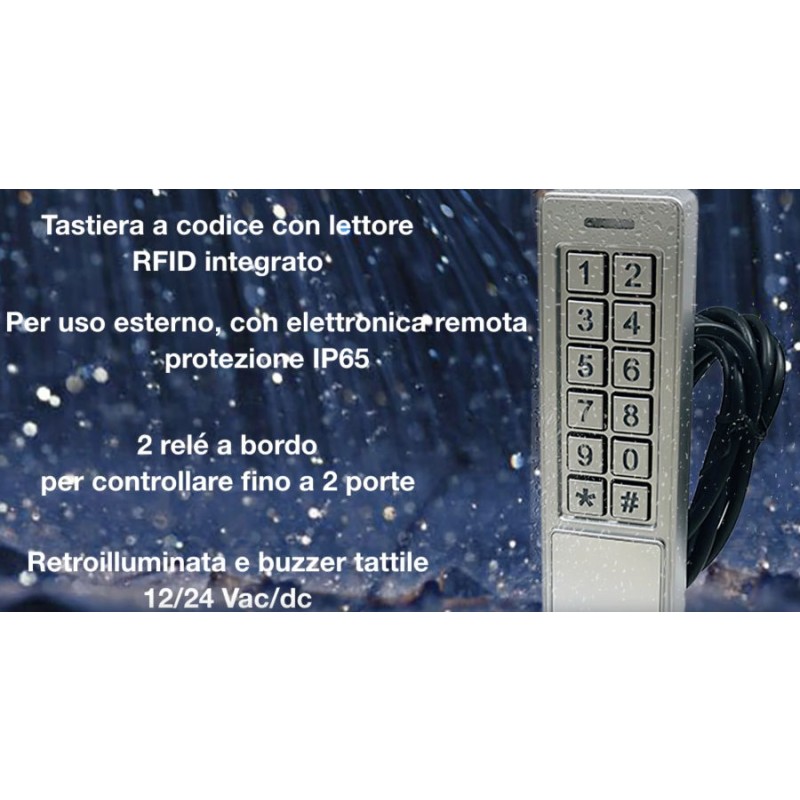

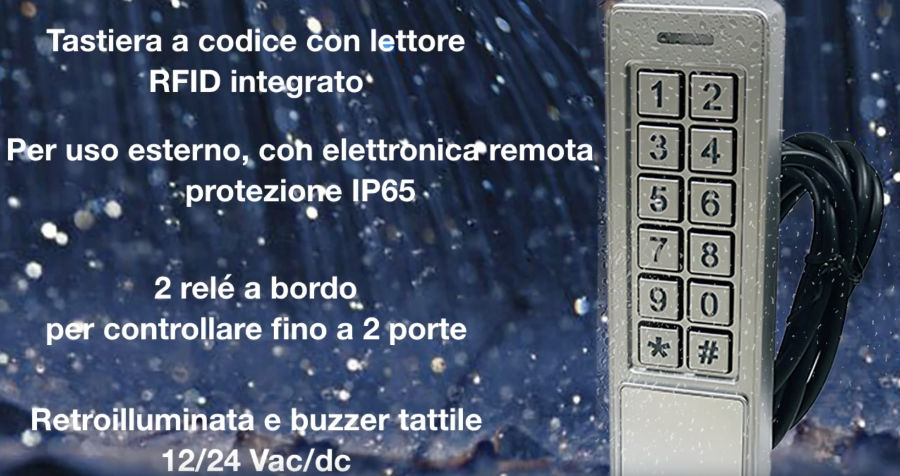

Outdoor code keypad, with transponder reader. Two releases for the management of 2 doors with code or card. Separate electronics for absolute safety. Vandal-proof, with anti-tamper system.
Are you looking for an Opera product not present on our site?
Download the Opera catalog and find the code.
Then contact us and ask for a quote.

- +

Code Keypad with RFID Reader - 57301 Opera - 12/24 Vac/dc - Backlit Blue Color

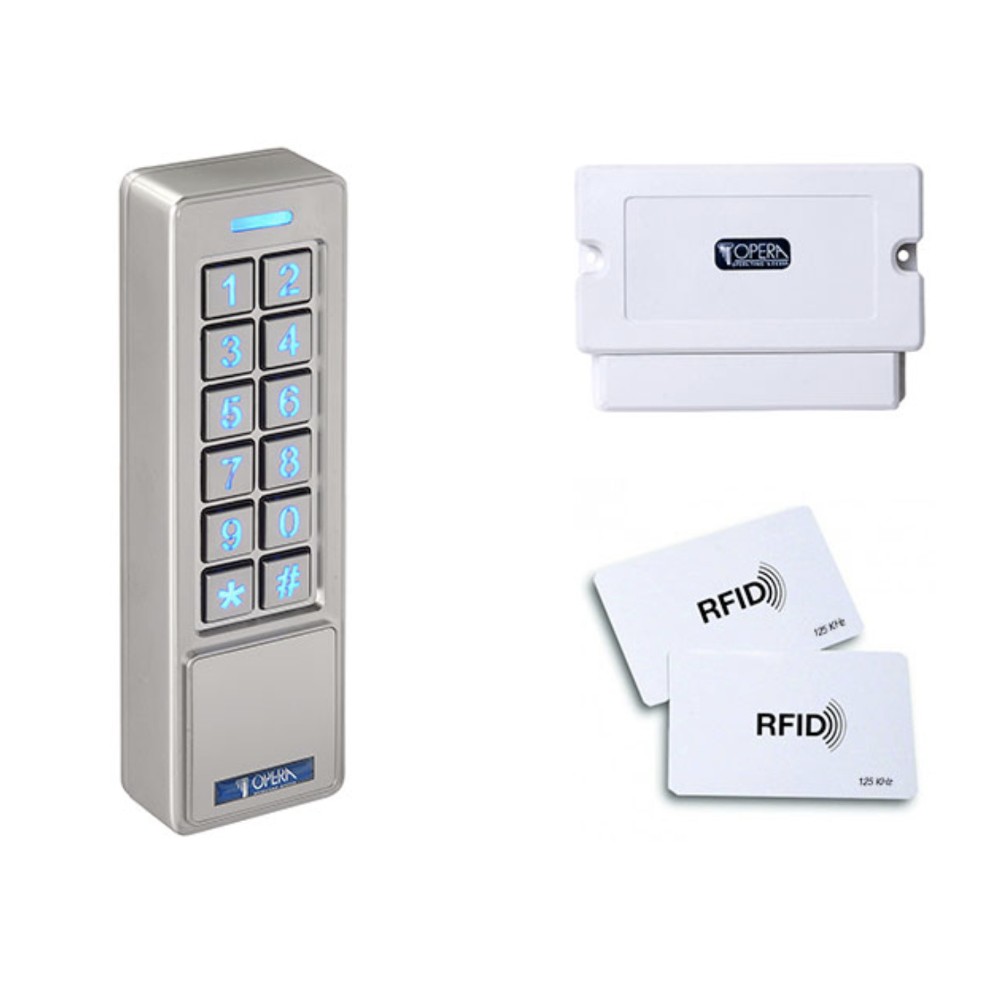

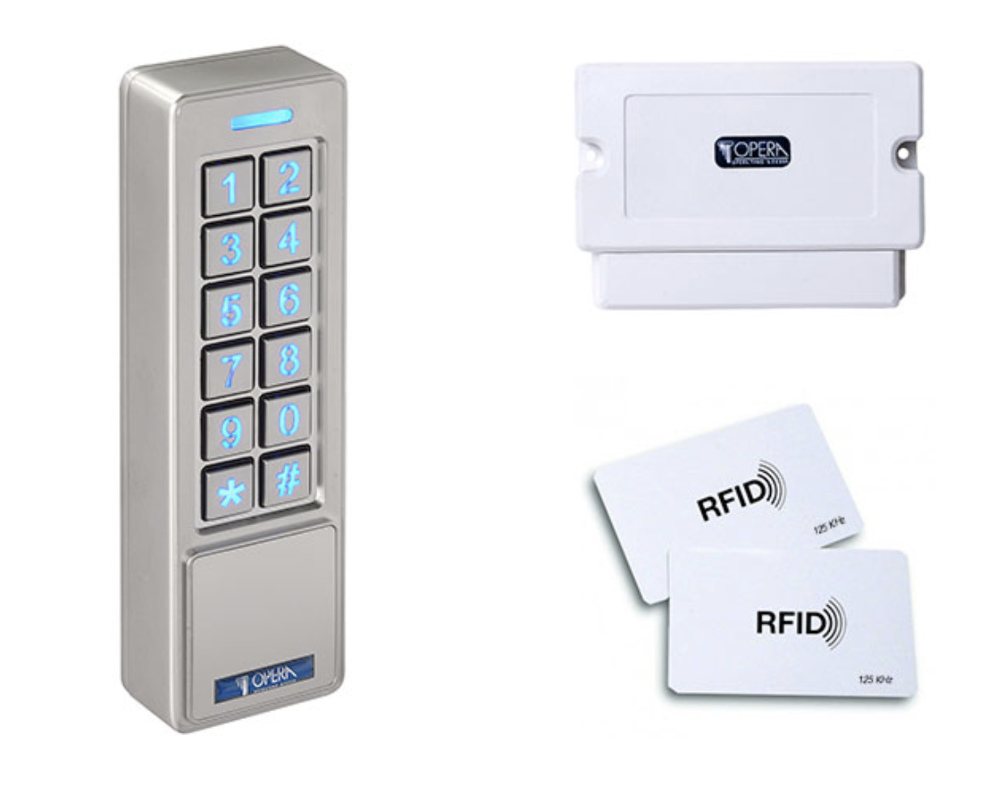

Code keypad with RFID card reader - Combined access control system, keypad and transponder reader.

External keyboard equipped with transponder reader, designed to manage two doors via code or card. It has a separate electronic unit to ensure maximum security and is designed to resist vandalism, including an anti-tamper function.

Art. 57301 - 12/24 Vac/dc - blue backlit keyboard

  • IP65 protection rating - for outdoor use;
  • Current absorbed: 50 mA in stand-by/95 mA with active relay at 12 Vdc, 30 mA in stand-by/50 mA with active relay at 24 Vdc;
  • Internal buzzer to signal key presses;
  • Double relay for managing two doors separately.

Remote management electronics for:
  • Management of the lock opening command;
  • Anti-tamper “tamper” contact with buzzer activation;
  • Contacts of the 2 output relays 30Vdc / 10A timed from 1-99 sec. for the lock opening command or selectable in bistable operation;
  • Up to 1,000 4 ÷ 6 digit codes or 125 KHz transponder cards can be stored on output relay 1;
  • Up to 10 4 ÷ 6 digit codes or 125 KHz transponder cards can be stored on output relay 2;
  • Access programming with PIN only, transponder only or PIN + transponder;
  • Separate code storage for door 1 or door 2;
  • Activation of the anti-tamper alarm buzzer;
  • NO input buttons for opening door 1 and 2;
  • Code deletion: single or total.

Tastiera a Codice con Lettore RFID - 57301 Opera

Tastiera a Codice con Lettore RFID - 57301 Opera

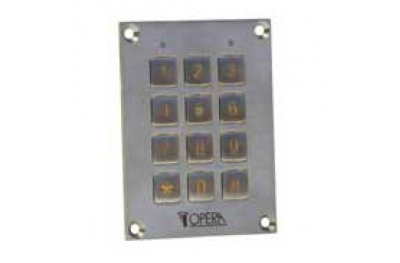

Access Opera Series

  • Access control systems.
  • Code keypads, magnetic stripe and RFID card readers.
  • Stand-alone version for single applications.
  • Online version managed by PC for multi-door systems.
  • People counting systems for libraries, museums, shopping centers.
