Chain Actuator WAY Mingardi Micro XL 230V Stroke 420-600mm 400N

Mingardi
Brands: Mingardi
Code: Micro XL WAY 230V
-30%
€ 240,18 € 343,11
Prices excluding VAT
You have chosen:
Are you looking for an actuator from the Mingardi catalog that is not on our site? Contact us and ask for a quote.

Unavailable
Chain Actuator WAY Mingardi Micro XL 230V Stroke 420-600mm 400N
Chain actuator for: top hinged windows, bottom hinged windows.


MINGARDI linear electric actuator with reinforced double-sprocket chain inside the actuator body.
Operating voltage: 230V~ 50 Hz in conformity with Directives 2006/95 LVD - 2004/108 EMC.
Tested in accordance with the requirements of the European Standard EN 12101 - 2.
Outfitted with electronic limit switch system for opening and closing, which can be connected in parallel.
Colours available: anodised silver (A) - anodised black (N) - RAL 9016 (B).

Characteristics:
  • Maximum power;
  • Strokes up to 835 mm;
  • Double-link chain;
  • Tested in accordance with the requirements of the European Standard EN 12101 - 2;
  • Silicon cable;
  • Protection degree IP 22;
  • Limit switch closing-opening: Electronic.

Colour: Anodised silver (A) - Anodised black (N) - RAL 9016 (B).

Universal kit for fitting top-hinged windows (code: 2700090) sold separately.
Universal kit for fitting bottom-hinged windows (code: 2700091) sold separately.
Pivoting bracket for horizontal plane applications (code: 2700095) sold separately.


Technical Features:
 DESCRIPTION  VOLTAGE  THRUST TENSILE  STROKE  CONSUMPTION MAX  SPEED MIN.
 Micro XL  230 V~ /  50 Hz  400 N  420mm  600mm  160 W  ca. 22 mm/s
THE VALUES INDICATED ON THE TABLE ARE AVERAGE VALUES WERE RECORDED IN CONDITION OF NORMAL USE.

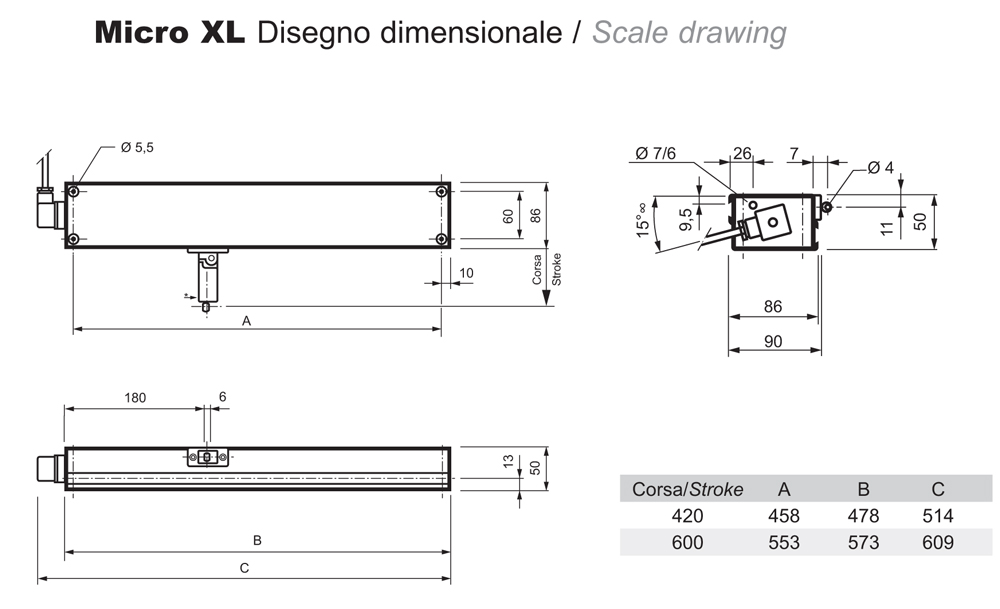

Micro XL Way Mingardi
