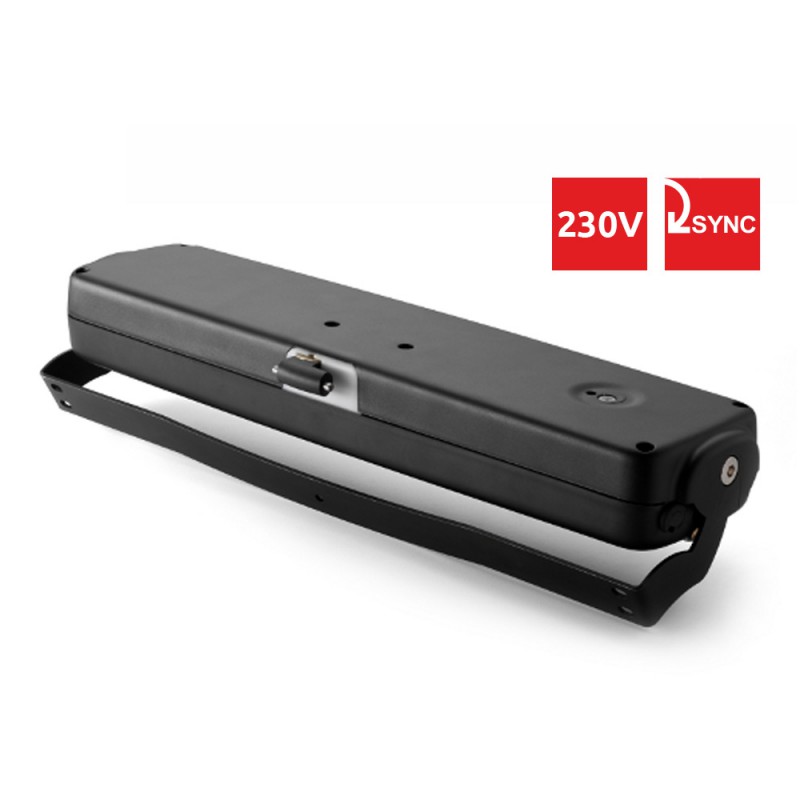

Chain actuator C40S Sync 230V 50Hz Topp
C40S Sync synchronized 2 push points Black Grey or White
Topp electric actuator model C40S Sync 230V with double-link articulated chain, contained in a special casing, complete with support and accessories for top-hung or bottom-hung opening.
S version designed for synchronisation and simultaneous operation of multiple actuators installed on a single window frame.
The price is for a single actuator.
Actuator Description Chain Actuator C40S Sync
- Operation 230V 50Hz;
- Maximum applicable load 400N;
- Quick coupling attachment to the frame;
- Maximum stroke of 500mm with stroke adjustment in 7 positions (100, 150, 200, 250, 300, 400, 500mm) by means of a special adjustment knob;
- Electronic closing limit switch with current absorption;
- Safety device for reducing traction force in the last 10cm of the stroke;
- Degree of protection for electrical devices IP55;
- CE marked device.
C40S Sync 230V 2 push points
Choose the version of your Topp actuator:
- 3A22#000005566 - Black;
- 3A22#000005567 - Gray;
- 3A22#000005568 - White.
Why choose C40S Sync Topp?
- C40S Sync is ideal for being synchronized and working with multiple actuators installed on a single window frame;
- Possibility of stroke adjustment;
Stroke adjustment possibility in 7 positions from 100 or 500mm.
- Limit switch in closing with current absorption;
Current-absorbing closing limit switch to avoid closing adjustments and to avoid any actuator positioning errors.
High degree of protection IP55
Technical characteristics of the actuator
- Power supply voltage: 230V 50Hz;
- Maximum applicable push load: 400N;
- Maximum applicable traction load: 400N;
- Strokes: 100, 150, 200, 250, 300, 400, 500mm;
- Current consumption: 0.24A;
- No-load translation speed: 18.5mm/s;
- Idle running time: 27s;
- Double electrical insulation: yes;
- Service type: S2 5min;
- Operating temperature: - 5 / + 50 °C;
- Degree of protection of electrical devices: IP55;
- Adjustment of the frame attachment: not necessary;
- Chain position control: yes;
- Limit switch: electronic on opening, absorption on closing;
- Electronics with acoustic warning to signal incorrect assembly by the user: yes;
- Dimensions: 387.6x95x50mm;
- Weight: 1.9Kg.
Actuator measurements
Measurements are in millimeters.
Actuator Applications
Aperture windows, hung windows, domes, dormers, roof windows, cupolas.
Included in the package
- Chain actuator, brackets for protruding and vasistas versions.
- Actuator and brackets are black, grey or white (depending on the colour chosen).
