Automation for Casement Window - Topp A90 Electric Actuator 230V or RWA 24V
The

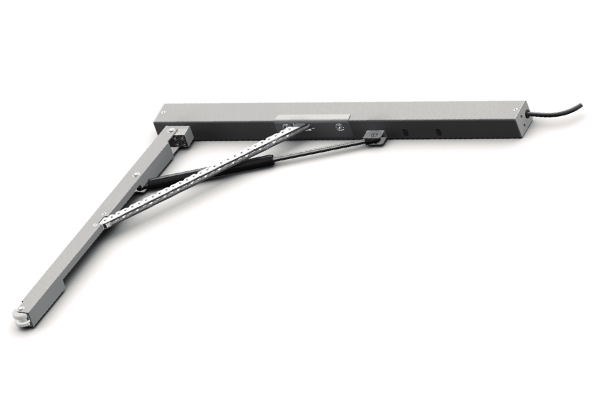

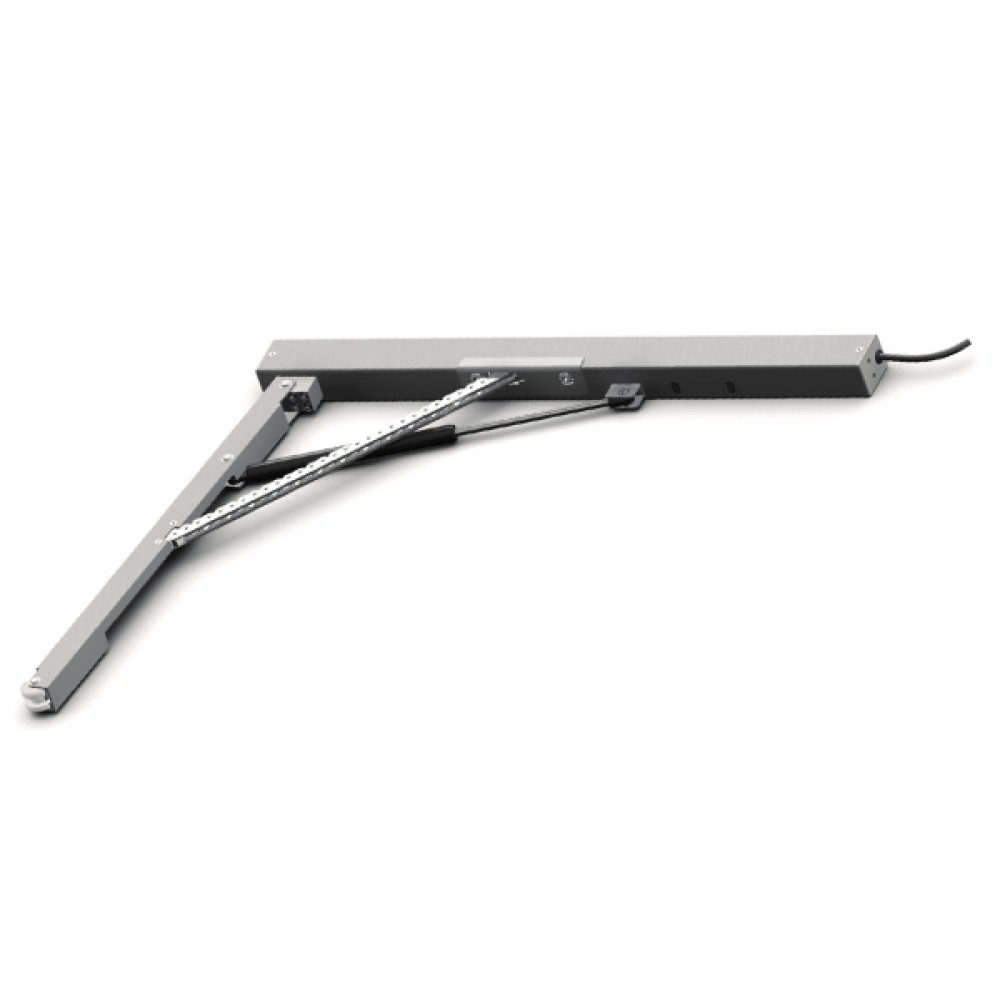

Topp model A90 electric actuator is designed for
swing opening windows, with a maximum opening angle of 100 degrees.

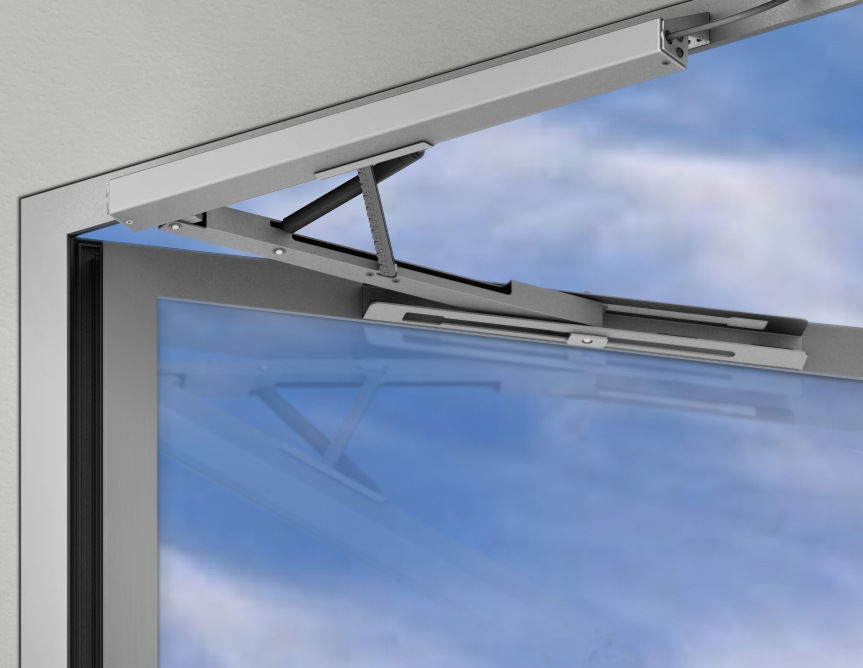

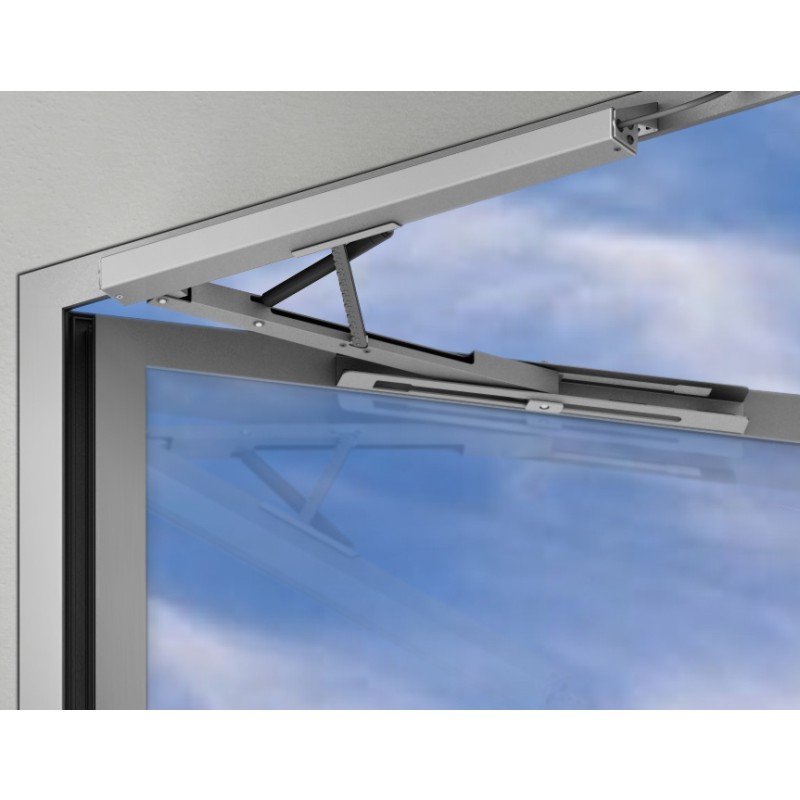

Casement window opening refers to a mechanism in which the window opens by rotating on a lateral axis, like a door. This type of
swing opening automation is particularly effective for ensuring good ventilation and ease of access for cleaning.
Can be ordered in two variants: A90 at 230V and A90 RWA at 24V. Both versions feature a
double-link articulated chain contained in an aluminum casing.
This casement window automation comes with
accessories and a special chain guide to ensure optimal operation. They can be installed for both inward and outward openings and are designed for the synchronization and simultaneous operation of two actuators installed on a single window.
Both models are
CE marked. The 24V RWA version is verified according to the EN12101-2 directive for smoke and heat extraction systems.
Technical characteristics of the Topp A90 230V actuator
- Supply voltage: 230V ~ 50Hz
- Initial thrust force: 400 N
- Final tensile force: 400 N
- Maximum opening angle: 100°
- Opening speed: 13.3 mm/s
- Opening time (opening at 100°): 30 sec
- Absorption: 0.2A
- Service type: S2 of 4 min
- Operating temperature: -5°C + 50°C
- Degree of protection: IP 30
- Possibility of double push point on the same window: Yes
- Parallel connection of 2 or more actuators: Yes
- Trapping from 0 to 50mm with automatic learning: Yes
- Dimensions: 40 x 90 x 667 mm
Technical characteristics of the Topp A90 RWA 24V actuator
- Supply voltage: 24V dc
- Initial thrust force: 400 N
- Final tensile force: 400 N
- Maximum opening angle: 100°
- Opening speed: 13.3 mm/s
- Opening time (opening at 100°): 30 sec
- Absorption: 1.2A
- Service type: S2 of 4 min
- Operating temperature: -5°C + 50°C
- Degree of protection: IP 30
- Possibility of double push point on the same window: Yes
- Parallel connection of 2 or more actuators: Yes
- Trapping from 0 to 50mm with automatic learning: Yes
- Dimensions: 40 x 90 x 667 mm
Topp automation for casement windows: functions and advantages
- Inward and outward opening : the actuator can be configured to open both inward and outward, ensuring maximum flexibility of use;
- Synchronization : designed for the synchronization and simultaneous operation of two actuators on the same window.
- CE certification : both models comply with European safety and quality standards.
- Smoke and heat extraction system (RWA 24V) : the RWA version is certified according to the EN12101-2 directive, making it ideal for applications in smoke and heat extraction systems.
This product is ideal for those looking for a reliable and versatile solution for the automation of casement windows, with the possibility of choosing between 230V or 24V power supply depending on the specific needs of the installation.
Topp: Made in Italy technology and creativity
For over 20 years, Topp has offered a wide range of
simple and functional systems for window automation . The numerous international patents, which protect Topp's innovative solutions, have contributed to making the product known throughout the world as a
symbol of Made in Italy.
Each device is individually tested to ensure Topp's commitment to the highest quality.
