Cardin S449 remote control - 2 channels 433.92 MHz
The

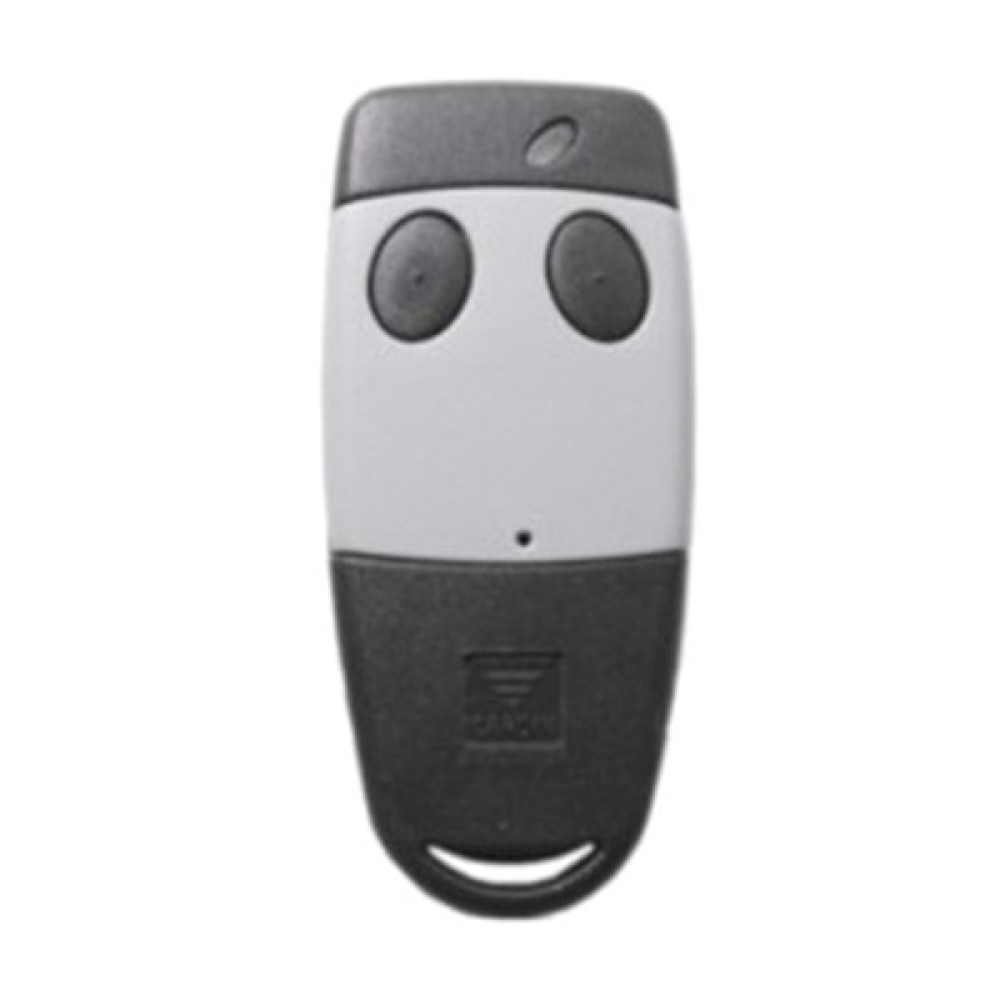

Cardin S449 remote control has two gray buttons and works at the FM frequency of 433.92 MHz, using a dynamic
Rolling Code.
The Cardin S449 remote control can be
programmed remotely or directly on the radio card of the automation.
The Cardin S449 remote control uses a Cr2032 lithium battery for power supply.
Cardin S449 remote control technical characteristics
- Cardin S449 remote control;
- Number of keys: 2;
- Frequency: 433.92mhz, superheterodyne modulation via quartz;
- Encoding: rolling code;
- Programming: self-learning on radio card;
- Power supply: new version 1 CR2032 battery;
- Container in shockproof plastic material;
- Dimensions: H 72 x W 34 x D 11 mm;

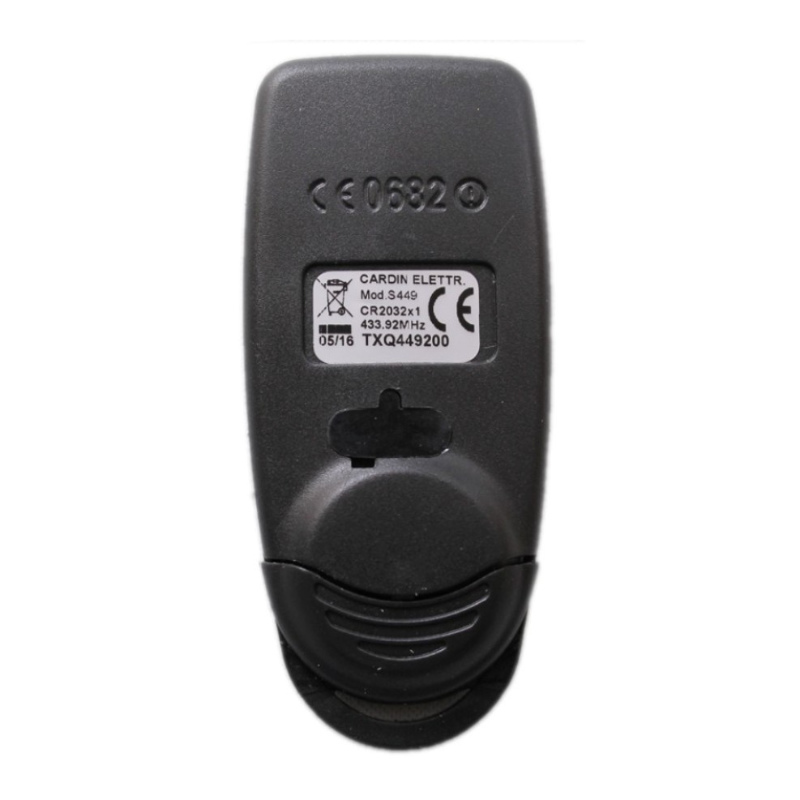

- Product article: Cardin TRQ449200 - CE 0682 - TXQ449200 - ZTA TX 449-QZ-2.
The Cardin S449 operating mechanism is also compatible with the following models: Cardin S437-TX2 and Cardin S449-QZ2 Green (version with green faceplate).
Instructions for encoding the Cardin S449 remote control
Here are the
instructions to code the Cardin S449 remote control remotely:
- Make sure you are a few meters away from the automation;
- Find the hidden button (small hole in front) of the remote already in use and press it with something sharp. This should emit a whistle from the automation area;
- Press the button on the already programmed remote control that you want to copy. The automation receiver will emit a short whistle to indicate reception of the signal;
- Take the new remote and press the key you want to program within 5 seconds;
- The automation receiver will give two short beeps to confirm that the new remote has been successfully programmed.
If during the last phase of pressing the new remote control a continuous whistle is heard from the automation, it means that the remote coding procedure cannot be performed. This could be due to the function being disabled by the system maintainer.
