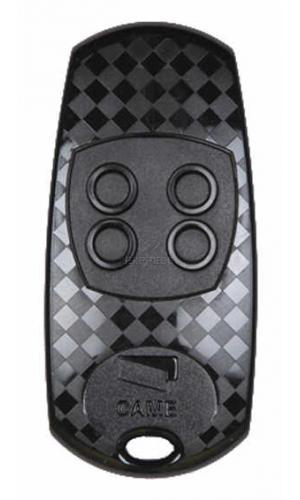

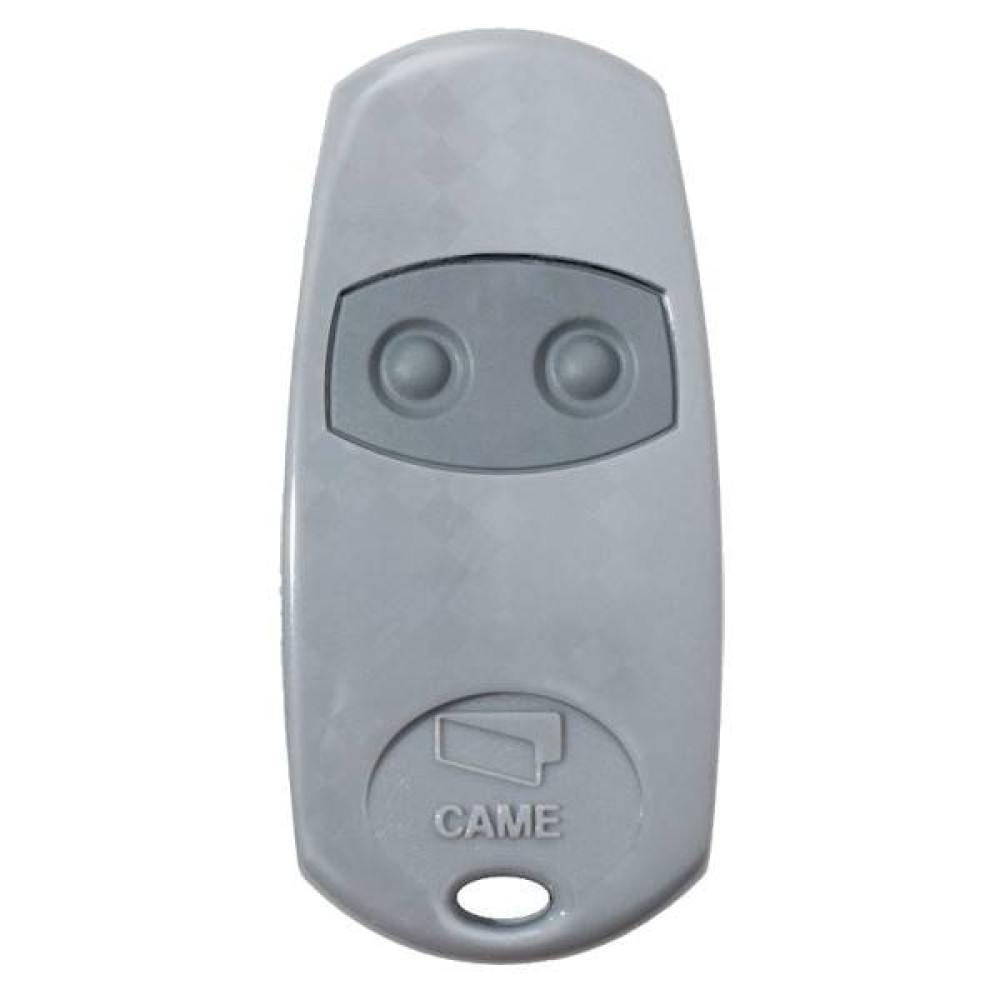

Came Top 432 EE Remote Control - 2 or 4 Channels - 433.92 MHz - Fixed Code
The
Came Top 432 EE remote control is a remote control for automatic gates equipped with
two or four output channels , depending on the model chosen. The operating frequency of the remote control is 433.92 MHz and it uses a fixed code coding system, which allows the remote control to be programmed quickly and easily.
The Came Top 432 EE remote control is compatible with automatic gates and doors in the Came range, and features an ergonomic and resistant design, which makes it easy to use and transport. The remote control can manage up to four different devices, such as a gate, door, lights or electronic locks.
The Came Top 432 EE
remote control can be programmed quickly and easily using a dedicated programming unit or by following the self-learning procedure on board the gate receiver. The Came Top 432 EE remote control is equipped with a long-lasting battery and a bright LED which indicates correct operation of the device.
The Came Top 432 EE remote control is ideal for those who want a remote control for their gate that is easy to use,
reliable and compatible with a wide range of Came devices .
Came Top 432 EE remote control features
- Came remote control model Top 432 EE;
- Number of keys: 2 or 4 (by choice);
- Frequency: 433.92Mhz;
- Programming: self-learning between remote controls with fixed code.
Came Top 432 EE remote control instructions
How to memorize the code of a 433.92 MHz Top remote control?
- Simultaneously press the two upper keys of the new transmitter (in the case of the 4-key model), until the LED flashes faster;
- Press the key on which you want to enable the opening command;
- Within 10 seconds of "phase 2", bring the already programmed transmitter closer to the one still to be programmed, pressing the key that commands the operation to be repeated. Once memorization has taken place, the LED will flash 3 times;
- Now the transmitter is ready to be used.
