Bracket Door Meeting PosaClima for Fixing Shutters Hinges

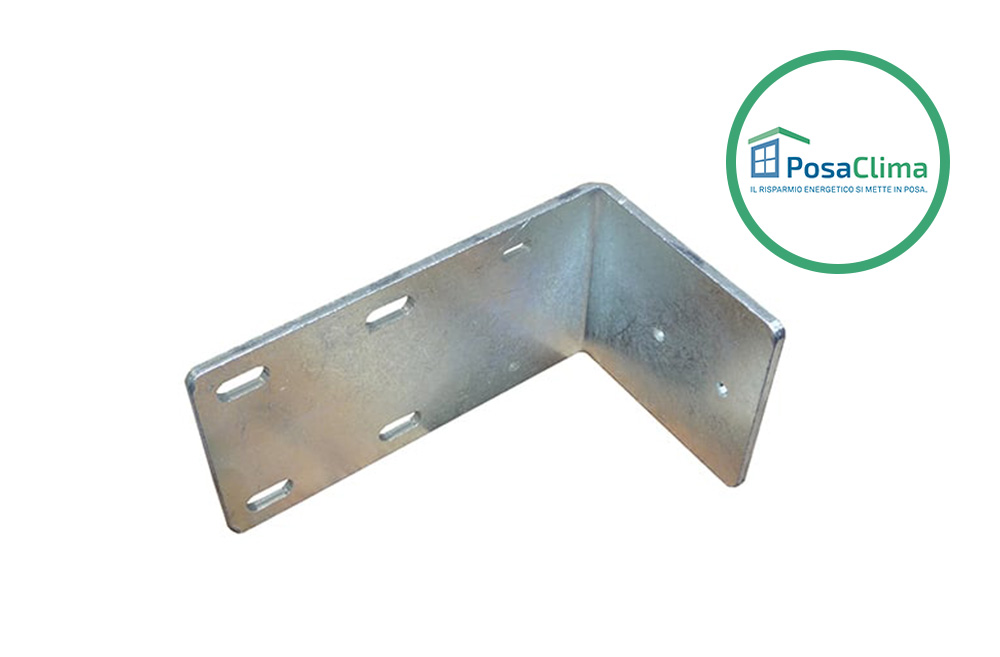

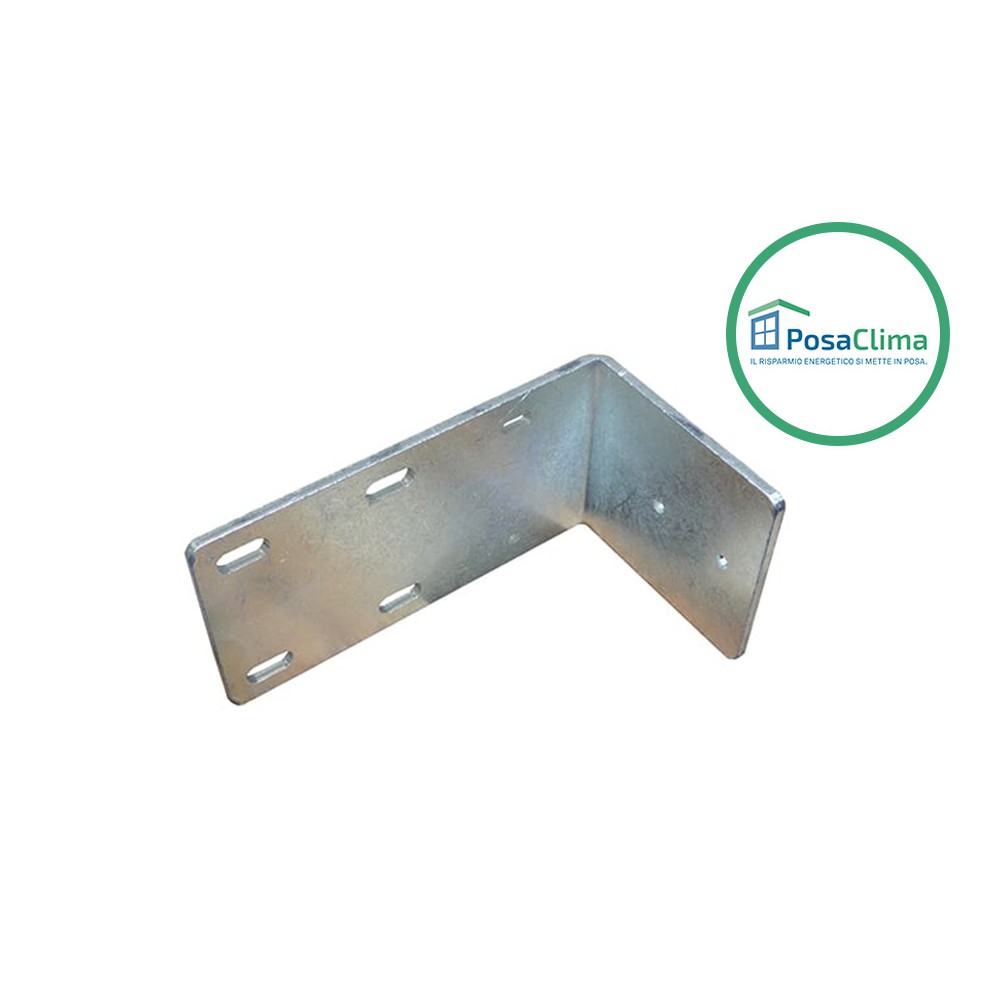

Steel bracket for fixing the shutter hinges
Special 5 mm thick steel bracket with a capacity of up to 100 kg per point, specifically designed for
fixing the upper locking pin for the central rod .
The lower pin binds itself to the marble of the sill while the upper pin should be fixed to the cladding which naturally has no mechanical seal. This problem is solved with a special bracket to be fixed in the wall before the construction of the coat on which a piece of wood is screwed. This piece of wood will provide the base for attaching the meeting pin.
Dimension: 150mm X 115mm
Minimum order: 1 pack of 10 pieces
Stages of assembly of the shutters on the external coat

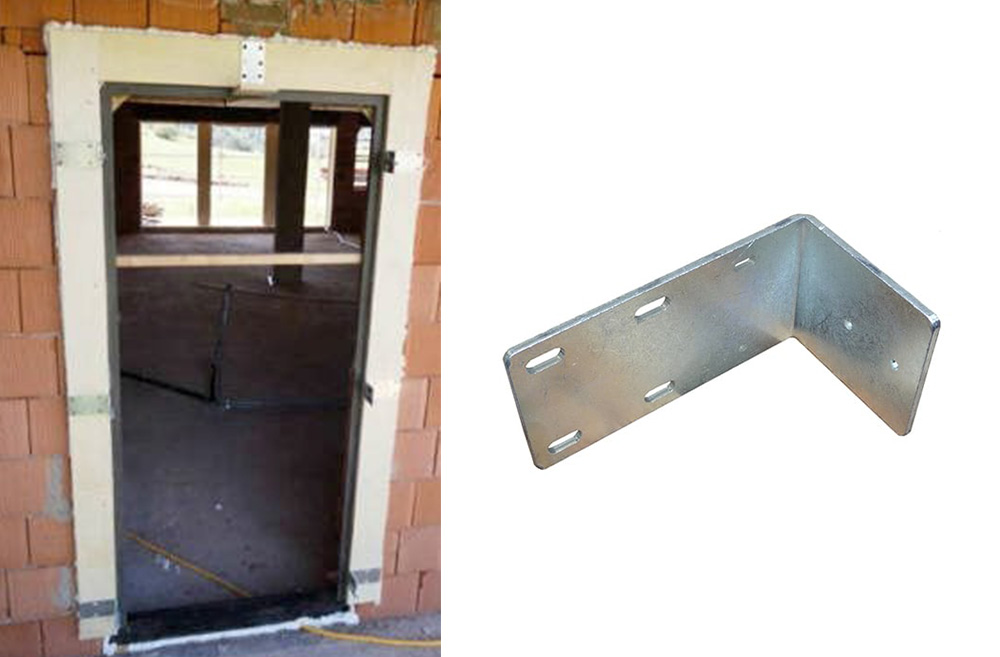

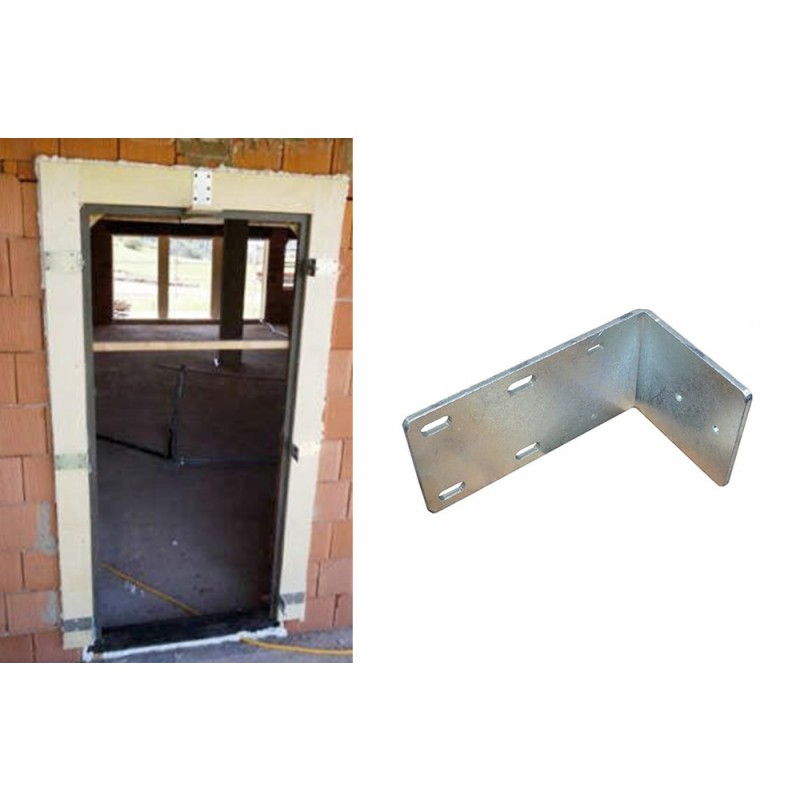

- The striker holder bracket is fixed in the upper middle of the fixing template for the card holder brackets and a piece of wood is screwed onto it (fig. 1).
- When the overcoat arrives, he will cut out the coat near the bracket and after filling it with foam (fig. 2) he will rebuild the shoulder (fig. 3).
PosaClima: accessories for the external coat of the house
PosaClima is the Made in Italy system for the installation of high energy efficiency windows . The advantages of this system range from high thermal and acoustic efficiency to flexibility in the construction phase. Discover all the PosaClima accessories in the Windowo online shop.
