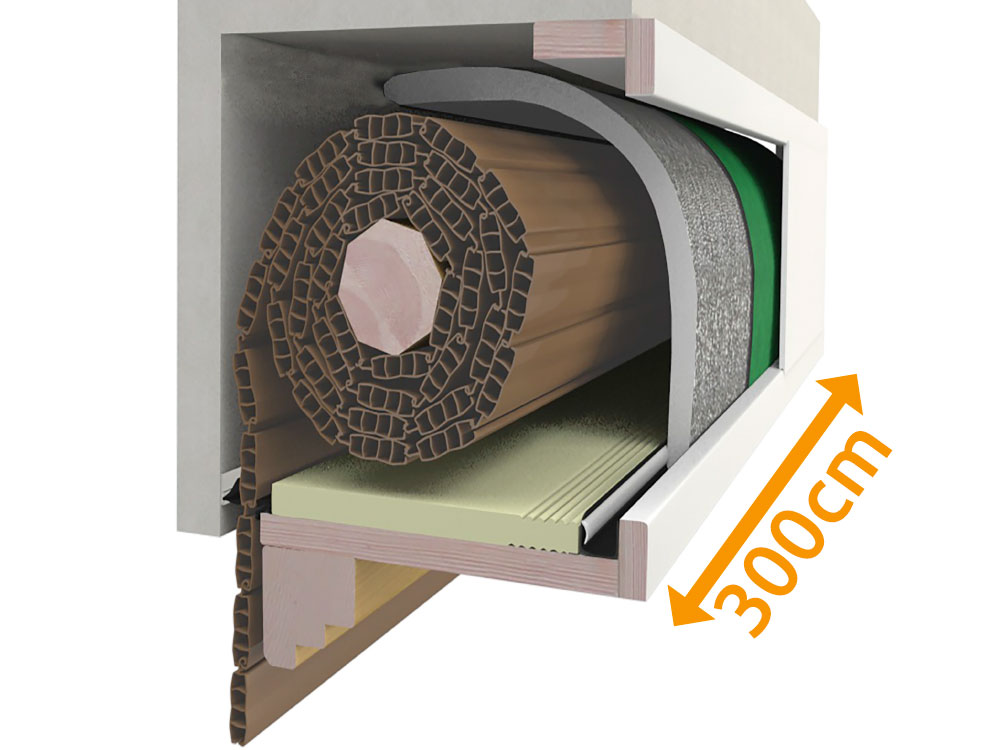

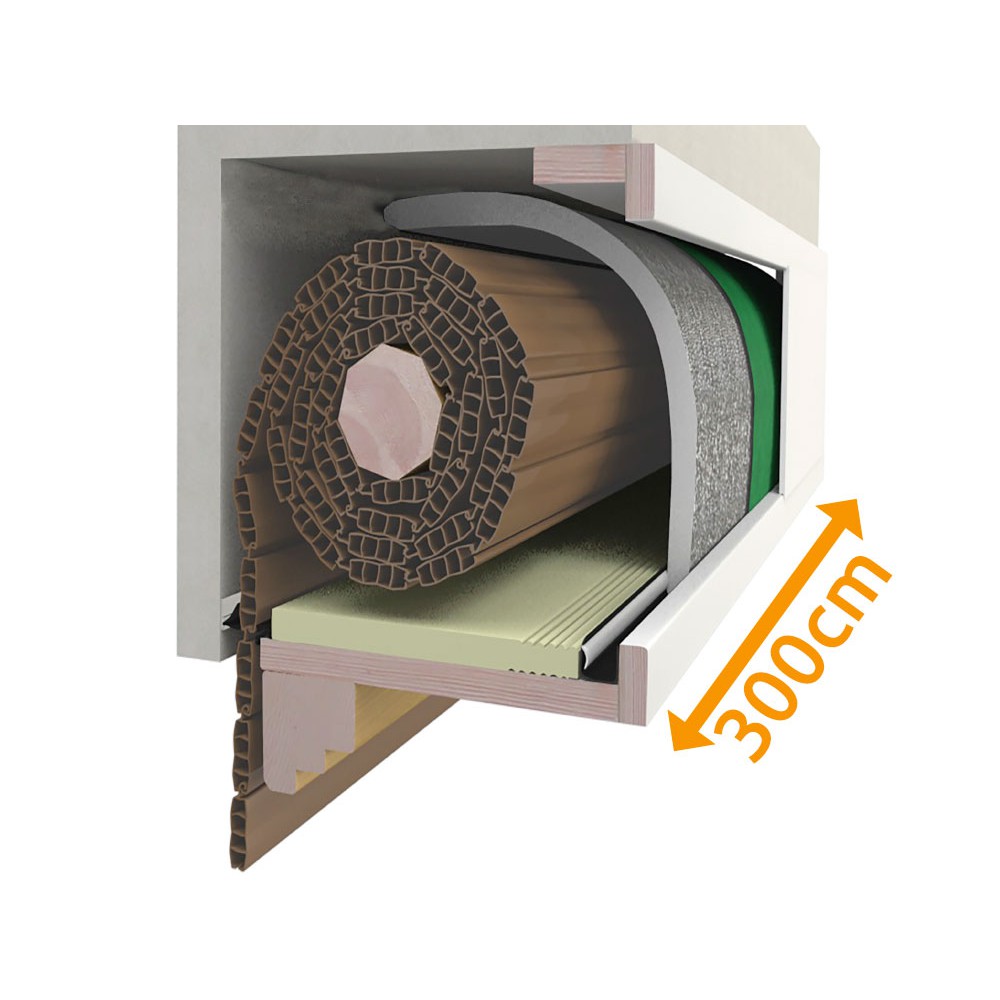

Box Insulation Kit Roller Shutters 300 cm PosaClima Renova
Roller shutter box insulation kit : composition of various items for thermo-acoustic insulation of the roller shutter box.
For this
acoustic and thermal insulation kit (choose the version you want) the maximum length of the box is 300 cm (internal measurement).
Shutter box insulation kit for sale online
How to
insulate roller shutters ? In the Windowo online store you can also find
Renova kit compositions for different maximum lengths of the roller shutter box.
Avoid energy dispersion with the Box Insulation Kit
In the context of the energy redevelopment of a building, the compartment of the box that houses the roller shutter (roller shutter) represents one of the most critical points of all. In fact, through the sliding slot of the fabric, the air at the external temperature enters the box and remains confined with respect to the internal environment only by the closing cover. The latter always has a very thin thickness and is normally not airtight.
The situation is then aggravated by the slot where the belt runs, a real through hole that connects internal and external. As a result, dumpsters very often waste more energy than windows themselves.
How to insulate the shutters? The PosaClima Renova system
PosaClima Renova proposes a system of thermal and acoustic insulation of the internal compartment of the box, which is very simple to perform and very economical in the realization.
The results after this intervention are really surprising, as the transmittance coefficient U.sb of the box goes from 4.88 W / m2K of the traditional wooden box to 1.35 W / m2K for the same insulated box with the PosaClima Renova system.
thus reducing the heat flow and consequent heating losses by almost 4 times.
One of the great advantages of the PosaClima Renova system for the insulation of the box is the great versatility and simplicity of execution that make it suitable for any box and within the reach of anyone interested in carrying out this work: the necessary equipment is in fact minimal and the difficulties non-existent. .
Here are the articles of which this composition is composed:
1) A 10 mm thick Flexoterm self-supporting reflective and insulating panel, measuring 120 cm long x 220 cm high.
2) Three 10 mm thick Termopav panels, measuring 105 x 25 cm.
3) 10 mm PVC containment U for Flexoterm, three 100 cm pieces.
4) Three brush-holder profiles in pvc Brushofix of 100 cm.
5) An Air-stop toothbrush height 10 mm, cut of 300 cm.
Side caps in Flexoterm to isolate the sides of the box, which can be obtained from article 1.
A vapor barrier, cut 160 cm.
You can choose between the 4 available versions:
Standard composition: this is the normal version and without modifications. The thermal and acoustic seal is standard.
Thermal Composition: the composition is implemented by supplying a Flexoterm panel, a ThermoPav panel and a PVC containment U for Flexoterm with a thickness of 20 mm, instead of the standard which has a thickness of 10 mm (see article 1, 2 and 3 of the composition).
Acoustic Composition: the cuts of Acu-stop acoustic panel (article 6 in the image of the composition) are added to the Standard Composition: five cuts measuring 60 cm in length x 80 cm in height.
Thermal and Acoustic Composition: contains both the increased thickness and the acoustic panel. It combines the advantages of the Thermal Composition and the advantages of the Acoustic Composition together in a single composition.
RENOVA CLIMATE INSULATION KIT
| COMPOSITION KIT MODEL |
USB CASS. WOOD |
USB CASS. PVC |
USB CASS. ALUMINUM |
| PCR300 STANDARD 1 TOOTHBRUSH |
1.8 |
1.7 |
- |
| PCR300 STANDARD 2 BRUSHES |
0.95 |
0.85 |
- |
| PCR300 THERMAL 1 TOOTHBRUSH |
1.4 |
1.2 |
2.2 |
| PCR300 THERMAL 2 BRUSHES |
0.81 |
0.7 |
1.1 |
| PCR300 ACOUSTICS 1 TOOTHBRUSH |
1.8 |
1.7 |
- |
| PCR300 ACOUSTICS 2 BRUSHES |
0.95 |
0.85 |
- |
| PCR300 THERMAL AND ACOUSTIC 1 TOOTHBRUSH |
1.4 |
1.2 |
2.2 |
| PCR300 THERMAL AND ACOUSTIC 2 BRUSHES |
0.81 |
0.7 |
1.1 |
Guide to the use of roller shutter box insulation kits:
The work of laying the thermo-acoustic materials for the insulation of the box is extremely simple and fast. Each phase of this intervention is explained clearly and in depth in the manual containing the assembly instructions.
The document containing the assembly instructions for the Renova kits can be downloaded in the "Documents" section of this product sheet.
In the same section, the following certifications can also be downloaded (for acoustic and thermal insulation kit):
- Acoustic certification;
- Box Thermal Transmittance Certification;
- Air Seal Certification.
