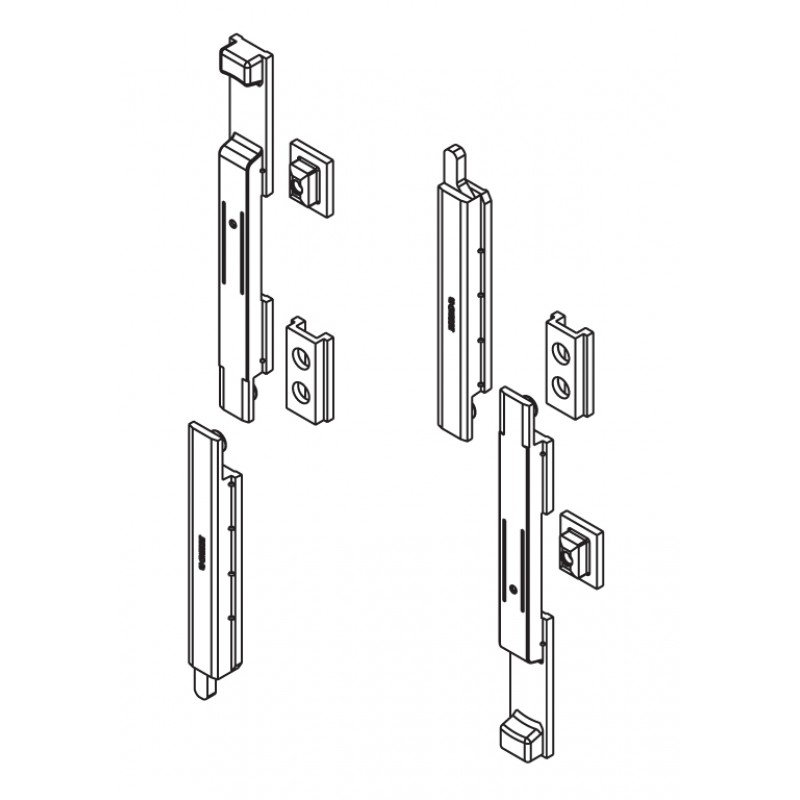

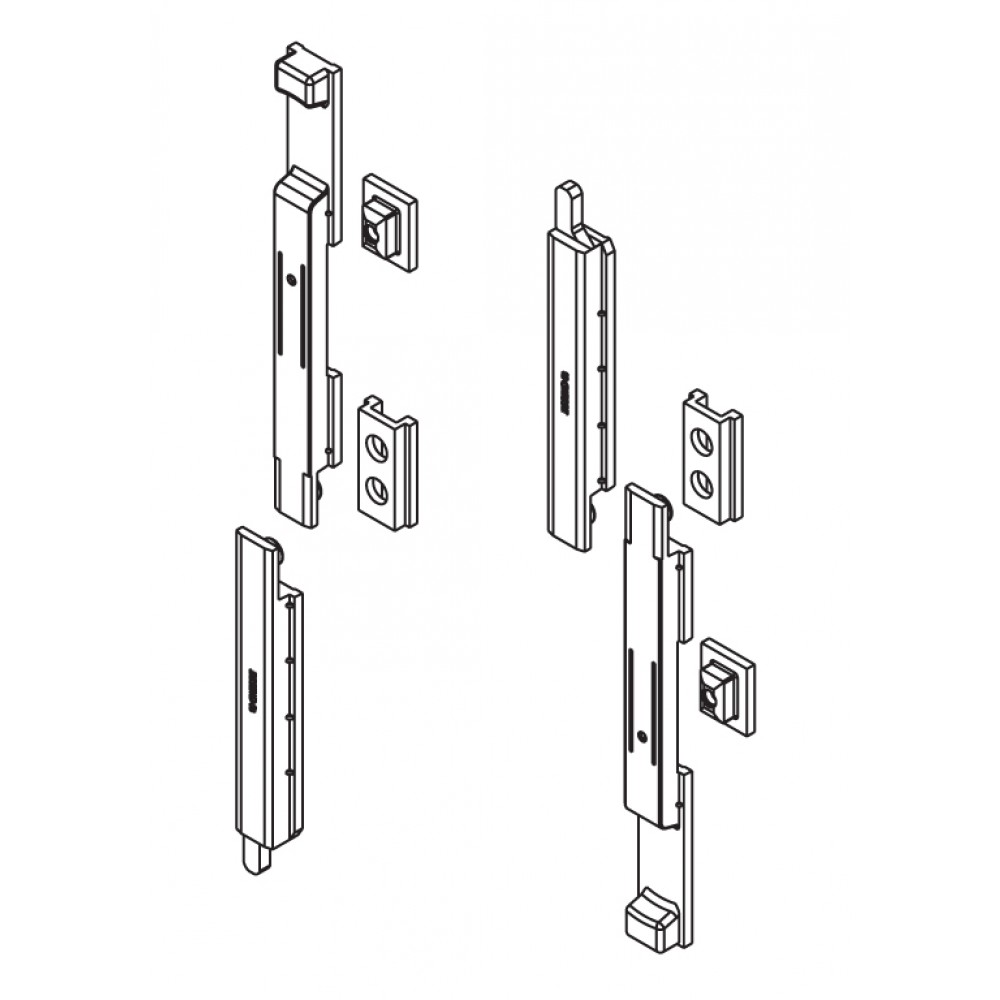

Giesse Giap Bolts for Windows Series R40 Silver Plus Pair
Giesse bolts in Silver Plus, Accessories for R40 Series aluminum frames
Price refers to the pair consisting of 2 pieces.
Functions - Giap Giesse bolts
- Nylon deadbolt composed of an operating body and an end piece with striker pin for direct fixing to floors.
- Useful for open joint aluminum windows or doors .
- For 18mm track.
Technical characteristics of Giap Giesse bolts

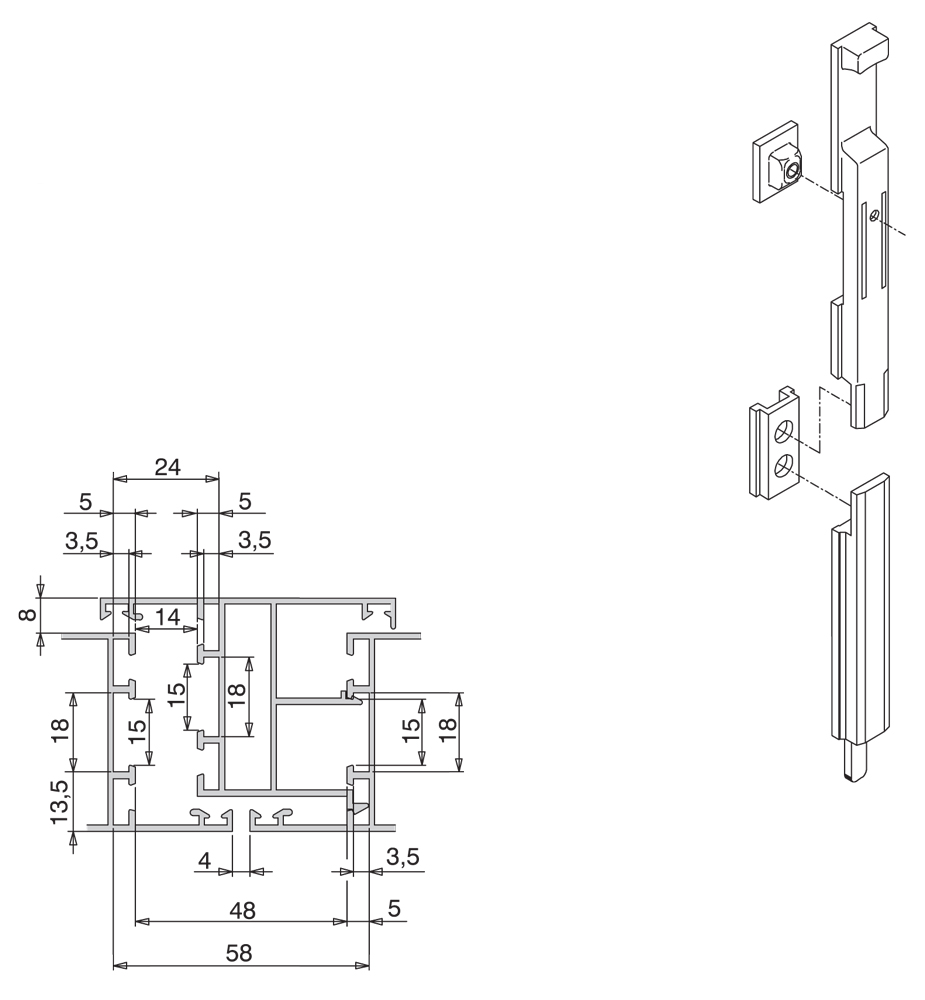

It is applied in the profile track without machining.
Once the positioning has been obtained, it is fixed by a block by acting on the pre-assembled M5 grub screw with a 2.5mm Allen key.
The lateral walls of the terminal have appendices intended to pass through when they are inserted into the track, in order to compensate for the extrusion tolerances and the thickness contributions of the paintwork.
The nylon connection plate can be replaced by the stock rod to prolong the manoeuvre.
Materials Bolts for Windows - Giesse Giap
- Base elements in nylon with glass fibers.
- Shaped terminal pin in galvanized steel.
- Fixing block in galvanized zamak.
- Grain in galvanized steel.
