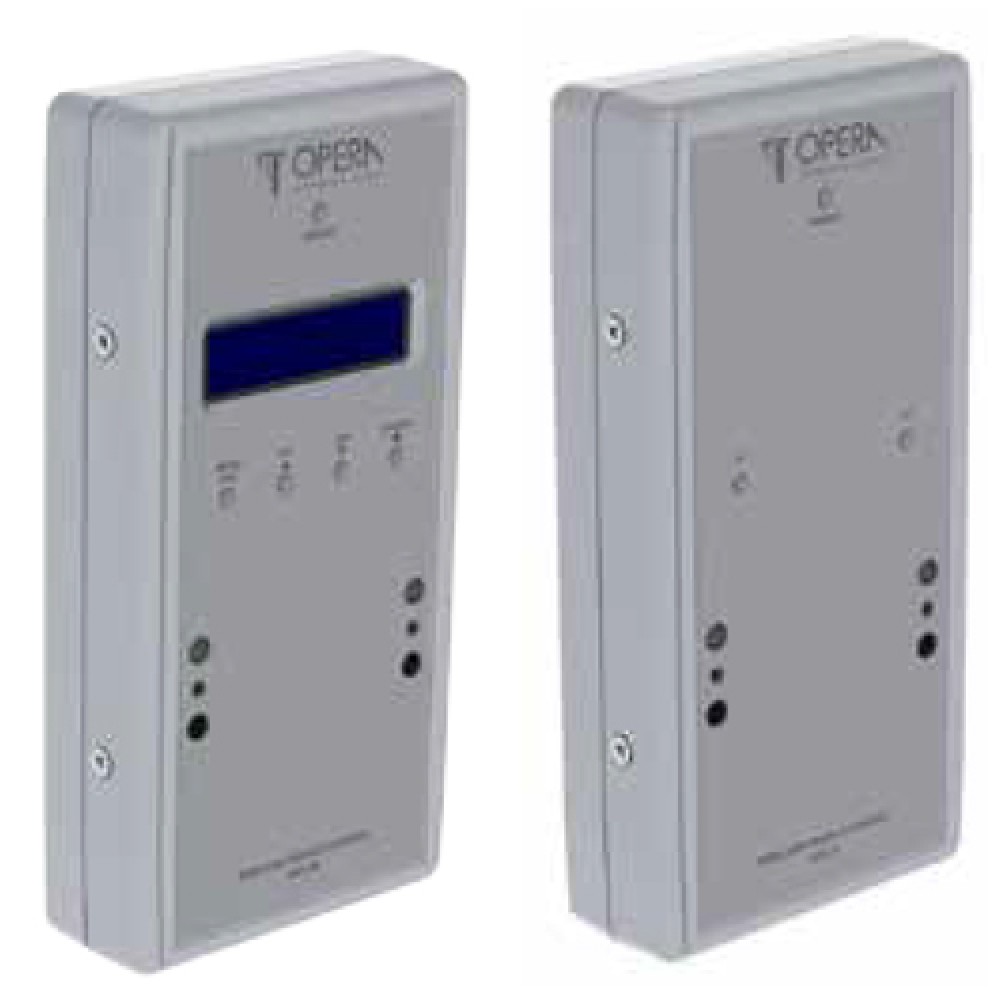

Bidirectional Electronic People Counting System 59002 Opera
Use of a people counting system for counting the passage of people
Bidirectional people counting system , ideal for monitoring the number of people present inside a room (public offices, exhibitions, museums, conference rooms, supermarkets, etc.).
Available versions:
- Stand alone
- Radio frequency for coupling to the concentrator
Features - Bidirectional Electronic People Counter - Opera 59002
Electronics in ABS boxes.
Dimensions: mm. 165 x 80 x 35.
Nominal voltage: 3.6 V Power consumption < 3mW.
Diet:
- powered by 3 x 3.6 V AA Lithium Thionyl Chloride non-rechargeable batteries, lasting more than one year. Protection circuit for incorrect battery insertion.
- from external power supply 12/24 Vdc - 12 Vac.
Front with 2 x 16 character LCD display: mm. 55 x 16.
Programming buttons from the Master circuit.
USB port for firmware updates.
SD card slot for data storage and transfer to PC when used in stand-alone version.
Addressing configurable from 1 to 10 when used with the concentrator connected to the PC.
Data transfer to the concentrator via 433.125 MHz radio frequency module.
RS-485 serial line for connection to the 59015 series display.
Real time clock/date.
Storage and maintenance in non-volatile memory of 12 months' data in 24 hours with detail for each hour.
Photoelectric barrier in bidirectional or monodirectional version.
Controlled gates:
- 1 for the one-way version with a maximum opening width of 2.5 m. with reflector.
Display views:
- Date and time.
- Total entries.
- Total exits.
- Daily present.
- Total presence from a pre-set date.
Programmable settings for:
- Date and time.
- Activation of "beep" function for each passage.
- Programming access password.
- Configurable gate direction.
- Activate/deactivate reset time.
- Setting maximum number of presences.
- Clearing of data in memory.
- Terminal number.
- Photocell alignment test.
- Factory reset.
- Multilingual support (Italian/English).
Opera people counting application example
People Counter Opera Series
- Advanced wireless system for counting the passage of people.
- Battery powered.
- Stand-alone operation.
- Wi-Fi transmission to the concentrator.
- Concentrator with Ethernet connection.
Opera brand people counter to understand how many people enter
Opera srl, specialized in the design and production of electric handles, was created in 1997 in Modena, Emilia Romagna, land of food and motors. The entire management of the company comes from the Corni Serrature experience which has been present in the city of Modena for over a century.
The company is characterized by continuous expansion in world markets but with strong roots in Italy.
