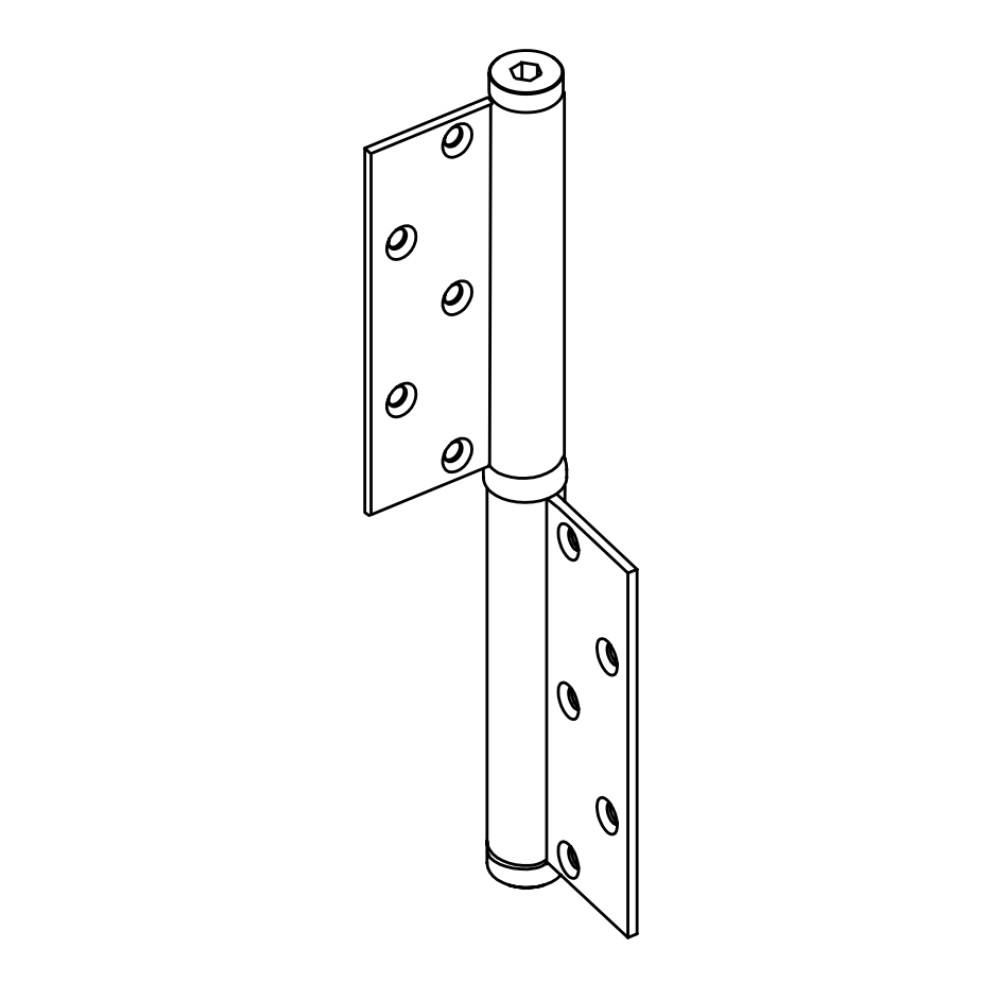

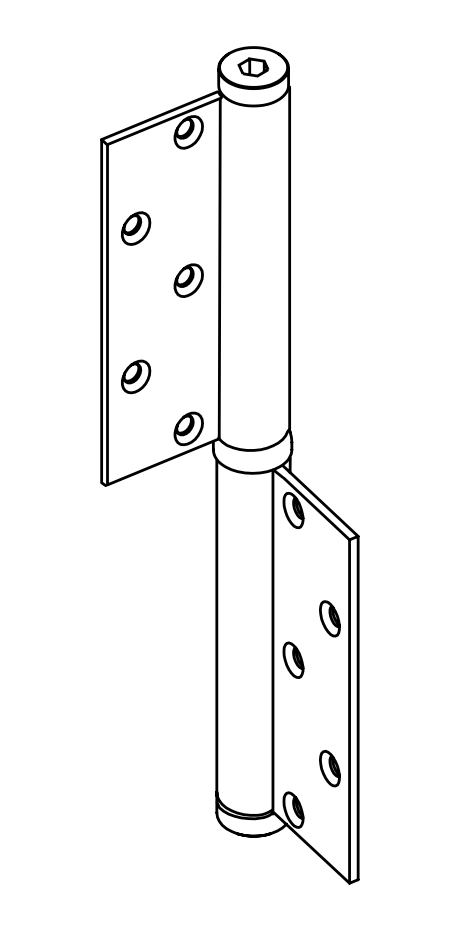

Band Pin with Bearing - Justor PPM CR - 2 Pieces - Galvanized Iron
Hinge with blades and bearing with screw fixing.
Strap pin with bearing that allows smooth opening and closing thanks to the bearing in the center of the axis.
Identical model for left and right opening. Made in galvanized iron.

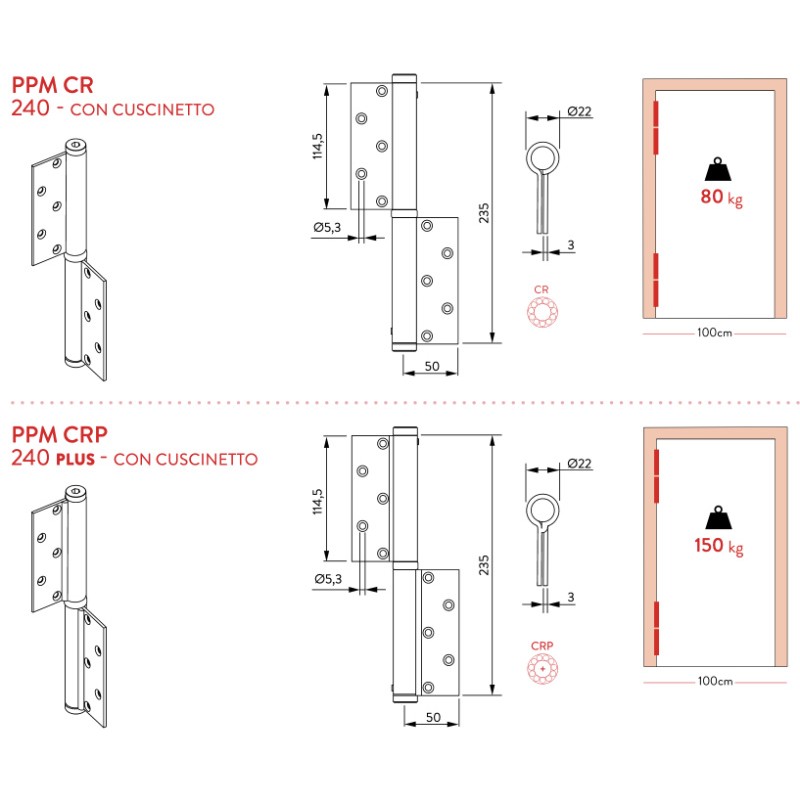

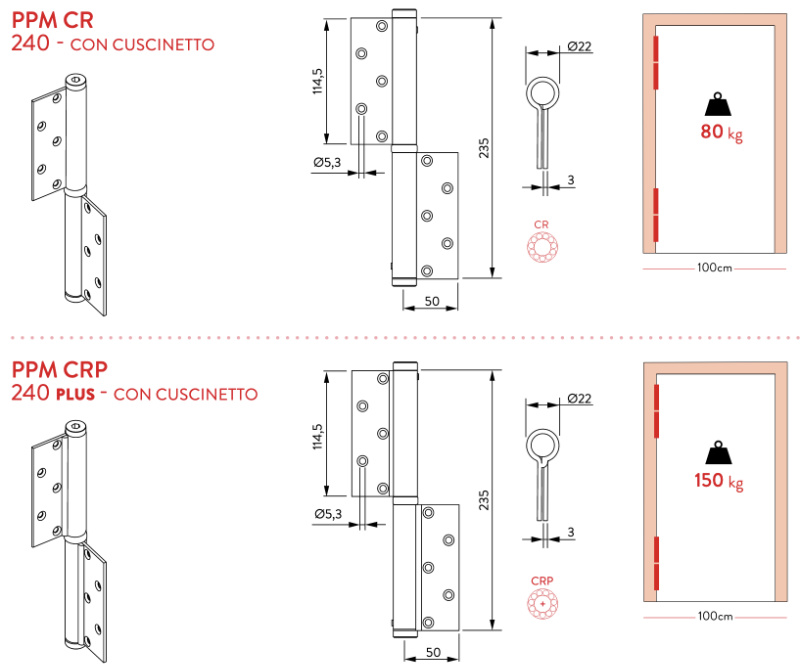

Door weight up to 80 kg (CR model) or
150 kg load (CRP model).
Justor PPM CR outer materials
- Strap: galvanized steel;
- Adjustment cap: carbon steel;
- Washers: steel (stainless steel model CRP).
Justor PPM CR internal materials
- Axis inside: steel;
- Internal spring: steel plate set with protective grease.
Trunnion operation with bearing
- Application: Suitable for interior/exterior doors;
- Automatic return: yes;
- Power regulator: yes;
- Maximum opening: 180º;
- Cycles: more than 500,000.
