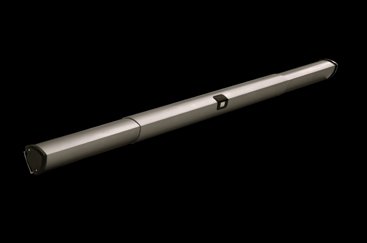

Automation for Sliding Doors V1 230V Topp
Topp electromechanical automation model V1 for disappearing sliding doors, max. load capacity 50kg.
Power supply 230V~ 50 Hz (integrated infrared sensor). We recommend reading the
brochure.
You can choose to purchase the version that can be used with the TS8 Selector Radio Control (purchasable separately on Windowo) or the non-usable version.
ATTENTION: the Topp brand V1 sliding door automation is supplied with
a single integrated sensor. If you want an additional sensor, it must be purchased separately. In fact, it is assumed that a button for opening is used on one of the two sides (normally supplied by the electrician).
Topp's V1 door automation guarantees several advantages:
- Ease of assembly;
- Possibility of installation also on existing doors;
- Minimal dimensions in an elegant design.
V1 is available with integrated infrared sensor and can be combined with the WS2 microwave sensor or the HS1 touch button and the TS8 radio control selector.
It can also be combined with the EB1 electric lock system with manual emergency release, which can be managed with 2 HS2 touch buttons.
V1 can be easily installed on all models of internal sliding doors, even after the door has been installed, and complies with the EN16005 standard, “Low Energy Movement” section, which allows you to avoid the installation of safety sensors or photocells thanks to electronic speed control.
The remote control selector allows the selection of the following functions: Open/Close/Entry only/Exit only/Door lock/Night function/Door reset (to restore correct operation in the event of an obstacle 3 times in a row)/Settings reset (to restore the programmed settings).
CE marking.
TOPP V1 AUTOMATION WHITE
TOPP V1 AUTOMATION GREY
V1 Topp sliding door automation technical features
- Power supply voltage: 230V ~ 50Hz;
- Peripheral voltage output: 5V 80mA / 24V 110mA;
- Current consumption: 100mA at 230V;
- Power consumption: 15W;
- Type of use: continuous use;
- Opening/closing speed: according to EN16005 “Low Energy Movement” standard with reference to the weight of the door;
- Door weight adjustment: from 150N to 500N with 35N steps settable by the installer;
- Max push force: 62N;
- Door open hold timer: adjustable from 2 sec to 60 sec;
- Insulation class: class II;
- Operating temperature: - 5°C + 50°C;
- Number of doors: 1 DOOR;
- Maximum load capacity: 500N;
- Passageway size: 700 ÷ 1000 mm;
- Overall dimensions: 59x59 mm x Variable length from 700 to 1000 mm.
