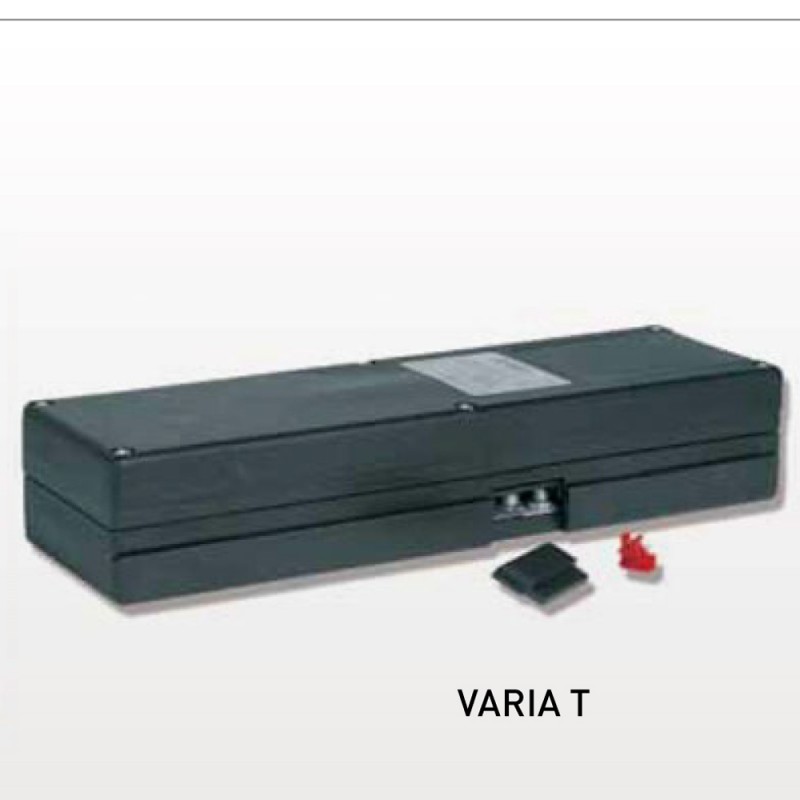

Aprimatic Varia T 230V Chain Motor for Vasistas Windows with Parallel Connection
Apricolor Varia T Aprimatic chain motor: actuator for top-hung and top-hung windows.
The Varia T motor model
allows several of these actuators to be connected in parallel .
The Vasistas Kit and the Projecting Kit are included:
the relative accessories for top-hung and bottom-hung applications are also included in the Varia T Aprimatic motor package.
TECHNICAL DATA Aprimatic chain motor Apricolor Varia T:
- POWER SUPPLY: 230 Vac;
- POWER CONSUMPTION: 150W;
- CURRENT CONSUMPTION: 0.8A in AC/1.8 in DC;
- PUSH FORCE: 150 N;
- TRACTION FORCE: 300 N;
- ADJUSTABLE STROKE: from 90 to 400mm;
- TRANSLATION SPEED: 40mm/s;
- FRONT ADJUSTMENT: max. 10mm;
- PARALLEL CONNECTION: Yes;
- THERMAL PROTECTION: 100°C (only 230 V versions);
- CAPACITOR: 4 μF;
- BUILT-IN RELAY: Yes;
- WARNING LIGHT: Yes;
- REMOVABLE TERMINAL BOARD: Yes;
- PROTECTION DEGREE: IP20.
Here are the dimensions: 26.5 cm long, 8 cm wide, 5 cm thick.
Note: The use of the Varia does not exclude the application of the security arms on the windows which must always be used.
Exclusive system for quick fastening of the actuator to the window.
Apricolor VARIA is the electromechanical chain actuator with internal collection in a nylon casing.

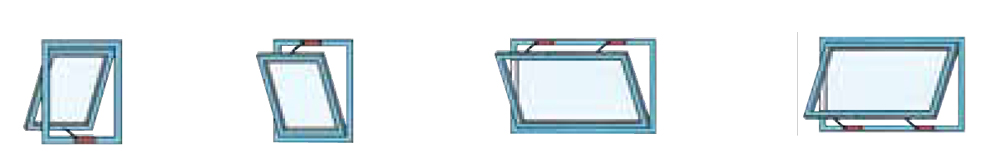

Suitable for top-hung and top-hung windows, adjustable stroke from 90 to 400 mm.
The operating chain is treated against oxidation with dacromet coating.
