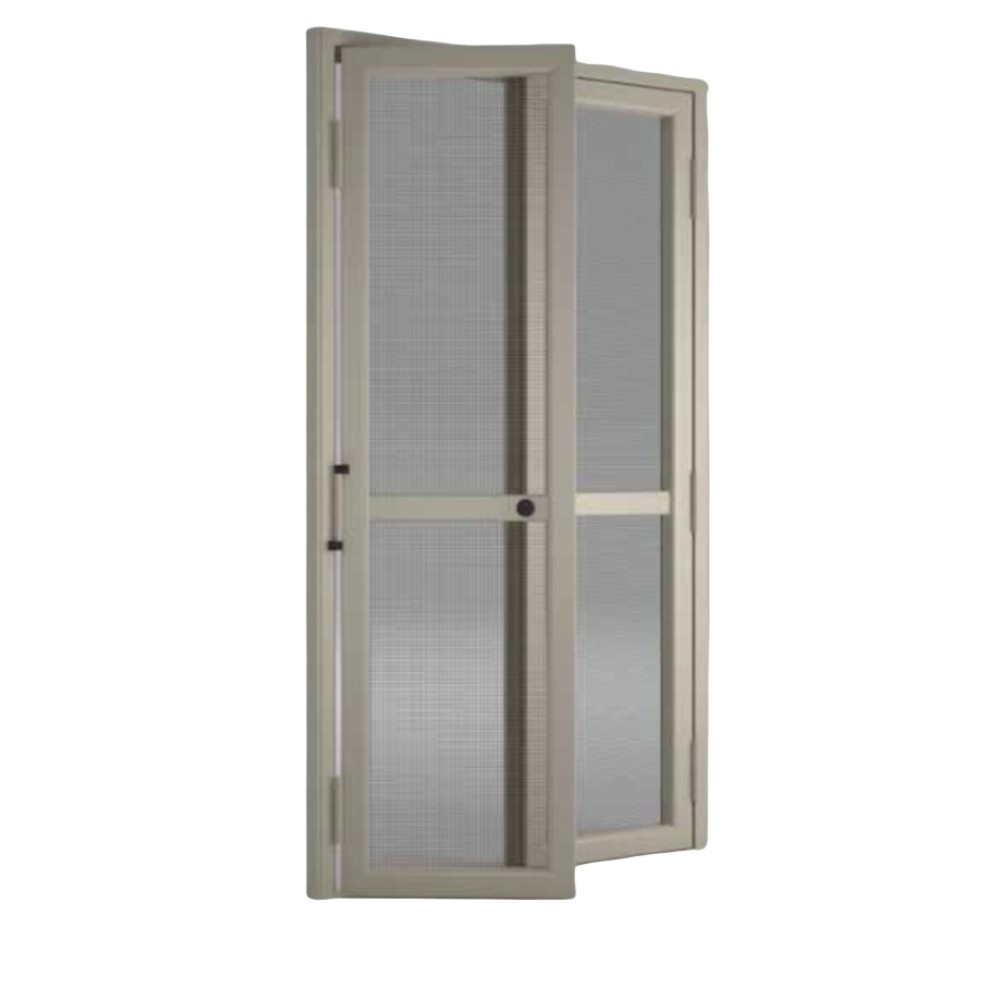

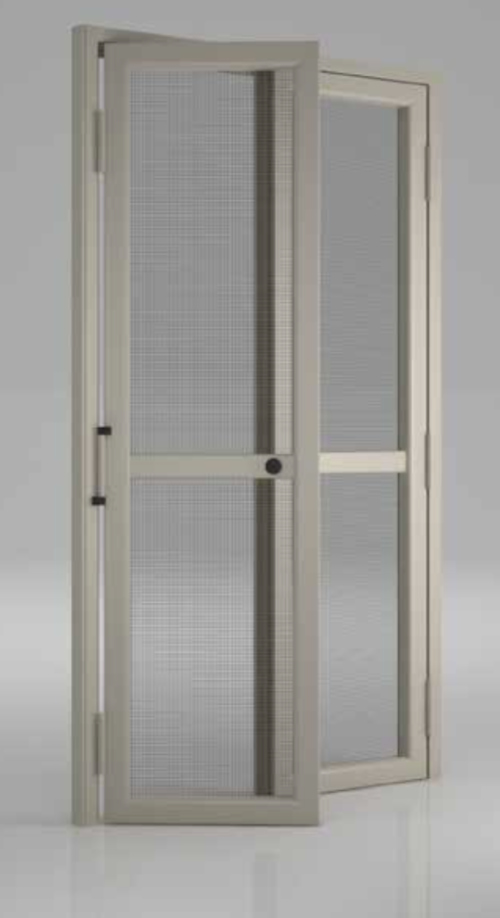

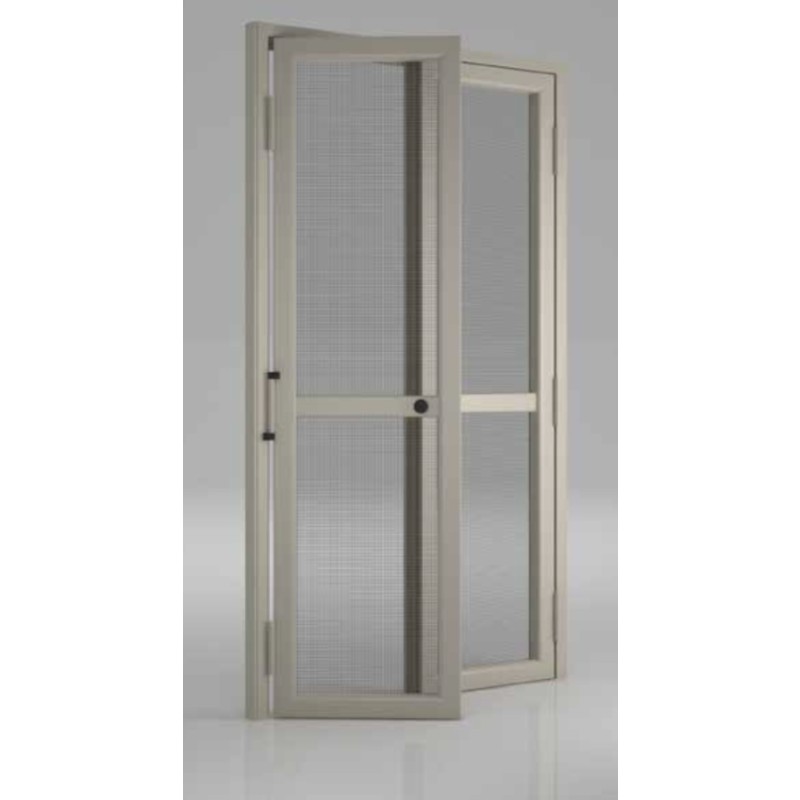

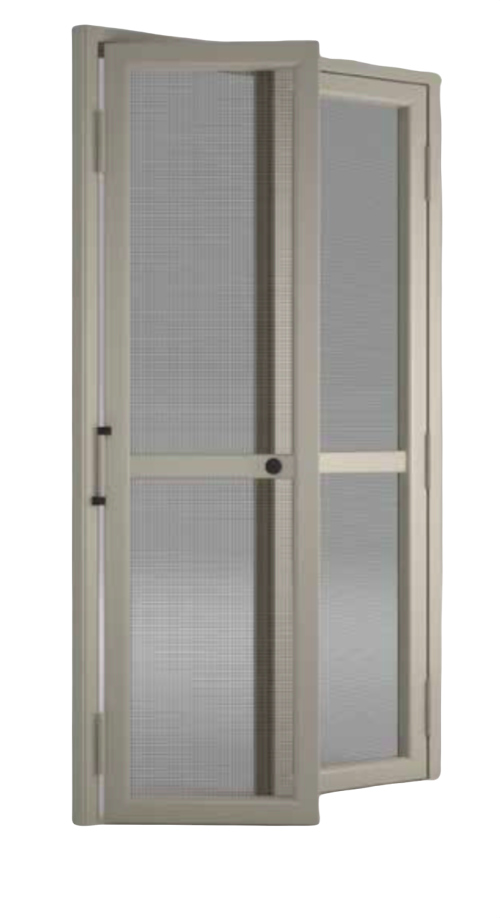

Alice Bettio Mosquito Net Hinged Door with Return Spring
Alice Bettio is a frame insect screen with the characteristics of a real aluminum window.
The hinged door insect screen is ideal for installation on doorways as, thanks to the absence of floor profiles, it allows easy passage.
Alice Bettio available in versions from one to four doors : the main door is equipped as standard with a door closer that can be activated or not during installation.
The Alice mosquito net is made as standard with a fiberglass mesh , it is also available with metal meshes ; moreover it can also be realized with particular , irregular or arched shapes (realization subject to feasibility check after sending a technical drawing).

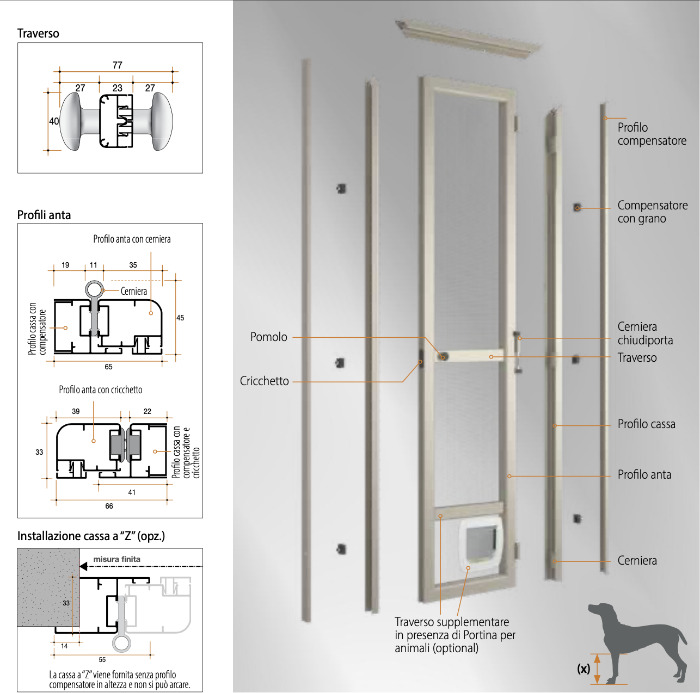

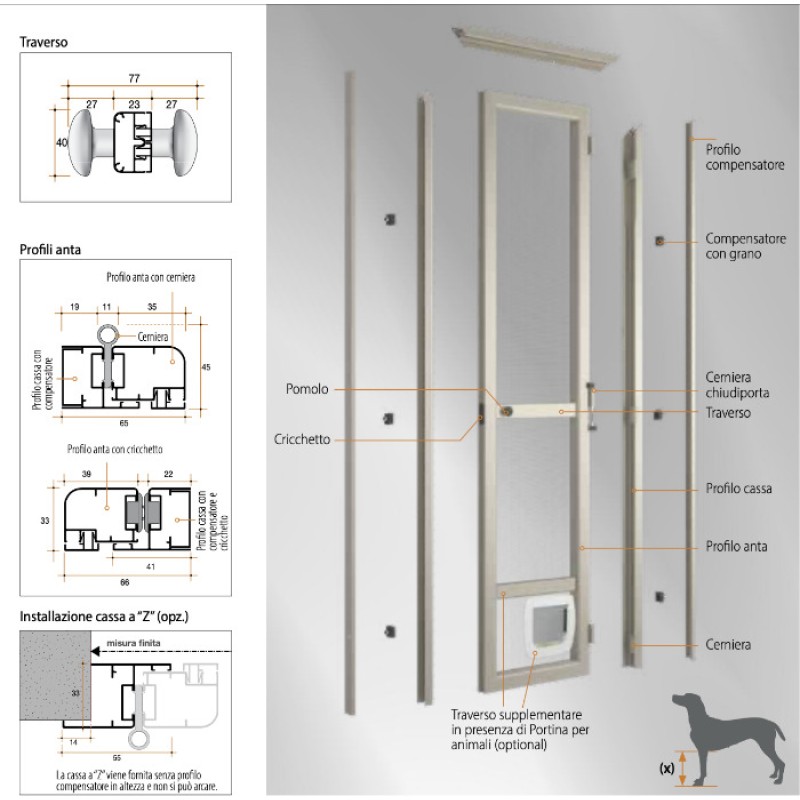

A peculiarity of the hinge of this product, allows to invert, in case of error, the A1 and A2 openings, without damaging the structure. From a height of 1700 mm, a crosspiece is positioned at 900 mm from the ground to the center of the crosspiece.
Alice Bettio features hinged door mosquito net
- Model: Alice Bettio;
- Overall dimensions of the box: 70mm with internal and external knob;
- Adjustments: 8 millimeters per side in width (excluding the version with Z-shaped case);
- Recommended application: door;

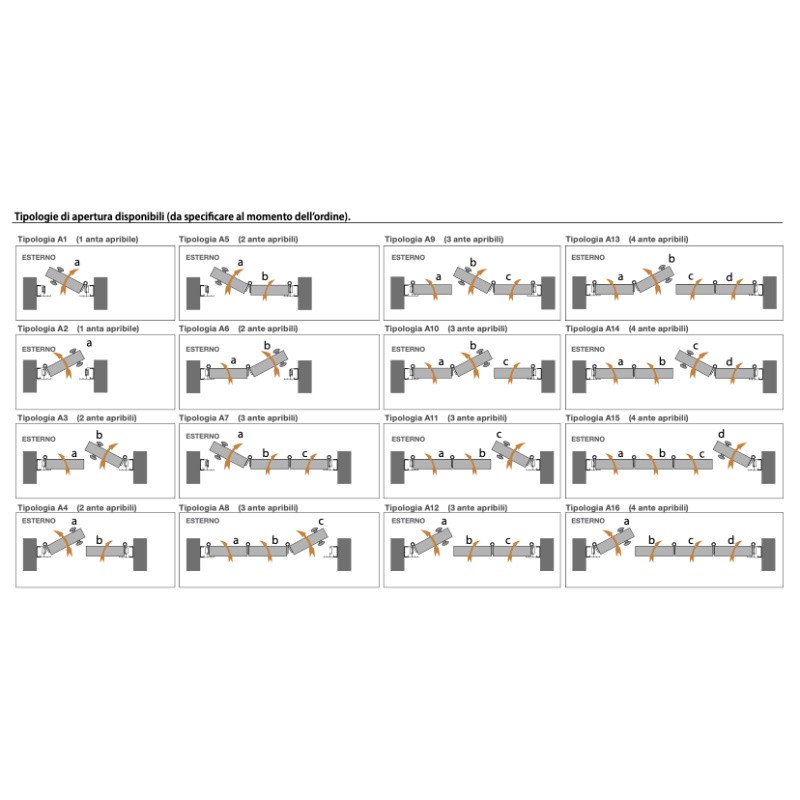

- Types of opening: to be specified when ordering;
- Number of doors: to be specified when ordering;
- Mesh finish: fiberglass, metal meshes on request.
- Aluminum color: at your choice (ask for a quote).
Black accessories.
Optionals available
- Mesh in silver, black aluminum or AISI 316L stainless steel. The AISI 316L steel mesh offers greater guarantees against oxidation and corrosion in environments where corrosive factors are present, considered "difficult" environments;
- 45 cm long deadbolt;
- Irregular shape of trapezoid or arch;
- Unequal doors;
- Regular or arched fanlight;
- Pet door.
Options
- Z-shaped case;
- Floor box;
- Superior compensation;
- Traverse at specific height.
Alice mosquito net can have an arched door
Alice can be produced with a
fully arched door or equipped with a regular or arched fanlight.
The height of the regular shaped transom window can never be less than 150 mm while for the transom window and arched door, the minimum guaranteed diameter is 650 mm.
The arching of this model in the color Testa di moro 2001 and in the oxidized colors can cause imperfections on the aluminum and therefore Bettio recommends avoiding such colors.
The production of these special items requires the sending of a template or a technical drawing, after which it will be possible to confirm the feasibility or not.
Mosquito net with pet door (optional)
Available in white, in the Swing1 models with useful passage 145x148mm and Swing11 with useful passage 218x255mm. Applicable only on wire mesh.
To determine the height in which to position the door, it is necessary to communicate, when ordering, the height from the ground to the beginning of the animal's chest (x) (min 93mm for Swing 1 and min 78mm for Swing11).
The
pet flap will be installed on the hinge side and an additional crosspiece will be installed above it.
Bettio mosquito nets: what are the advantages?
Among the many advantages of Bettio mosquito nets these are perhaps the most important:
- Safety : Bettio branded products have the CE mark certification;
- Testing : the mosquito net has a label showing the characteristics and marking;
- Packaging : each model of mosquito net is protected by a shrink film wrap;
- Patents : Bettio has several important international patents;
- Installation: simple to assemble, easily adjustable and adaptable to various types of compartments.
