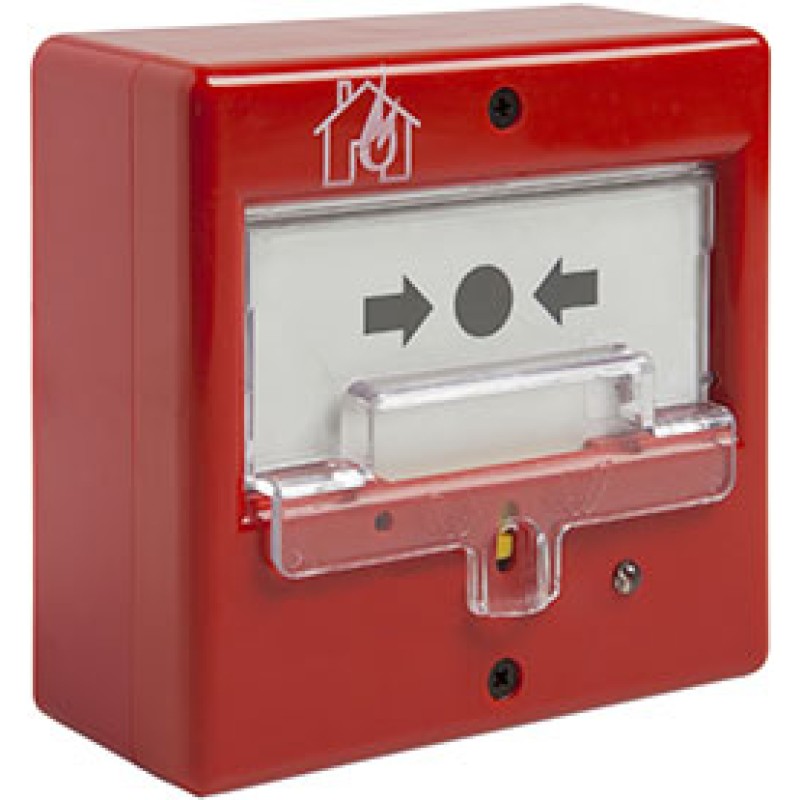

Alarm Cabinet for Fire Prevention System Opera 05110R EN54

Opera
Brands: Opera
Code: 05110R
-20%
€ 21,00 € 26,25
Prices excluding VAT
Opera 05110R alarm cabinet , designed for use with single-zone fire control panels. Complies with European standards EN54
Are you looking for an Opera product not present on our site?
Download the Opera catalog and find the code.
Then contact us and ask for a quote.

- +

Case for Alarm Activation for Single Zone Fire Control Panel - Opera 05110R - EN54 Compliance

The Opera 05110R alarm activation case is designed for use with single-zone fire control panels, ensuring safe activation and compliant with European standards EN54.

This device is essential for the effective management of fire emergencies, offering a reliable and easily accessible activation mechanism.


Use of alarm cabinet for fire prevention system

This fire alarm system conforms to EN54 standards , ensuring that it meets European requirements for fire alarm systems, ensuring reliability and safety.

Pressure on the plastic front plate activates the switching of the electrical contact. For single zone control unit Opera with EN54 compliance.

Teca di Allarme per Sistema Antincendio Opera 05110R EN54


IMPORTANT: Full EN54 Compliance

To obtain full EN54 compliance you must have the complete kit consisting of:

  • 52002 Single-zone fire alarm control unit (1 unit)
  • 05110R Case for pressure alarm activation with manual reset (2 units)
  • 05115 Reset button (1 unit)
  • 05207 Electronic siren (1 unit)
  • Choice of 05203 Combined heat and smoke detector (2 units)
  • Choice of 05204 Rate-of-motion heat detector (e.g. for kitchens) (2 units)
  • 00112 Battery for alarm control panel (2 units)


Single-zone Fire Control Unit Kit EN54 compliant

Do you want to make sure you have EN54 compliance? On Windowo you can also find the complete kit ready for purchase.

Centrale di Allarme Antincendio per Centrale Monozona EN54 Opera 52002


05110R Case for Pressure Alarm Activation with Manual Reset


Technical characteristics of Opera alarm case
  • ABS box
  • Dimensions mm. 99 x 95 x 43
  • Internal exchange contact C./NO/NC
  • Manual reset of the contact
  • Degree of protection: IP41
  • Transparent plexiglass cover to protect the display activation button
  • Red box (for connection to fire prevention systems)

Compliance : EN54-11


Sale of professional Opera branded items

Opera srl, specialized in the design and production of electric handles, was created in 1997 in Modena, Emilia Romagna, land of food and motors. The entire management of the company comes from the Corni Serrature experience which has been present in the city of Modena for over a century. The company is characterized by continuous expansion in world markets but with strong roots in Italy.

Opera products are proudly made in Italy. Over 40% of the company's turnover comes from foreign markets, however, 90% of the suppliers are local. Almost all of the products are made in the modern industrial plant in Opera, where technologies that respect the environment and the quality of work are adopted.
