Micro Kit Mingardi - Max stroke 400mm - Chain Actuator for Windows
Rod actuator for top hinged windows and bottom hinged windows
ATTENTION: Brackets included (attachment for top hinged windows, attachment for transom windows).
- Micro kit Mingardi linear electric actuator with articulated chain movement contained inside the casing.
- Operation with 230V ~ / 50Hz power supply.
- Complies with Directives 2006/95 LVD - 2004/108 EMC.
- Equipped with electronic limit switch system for opening and closing.
- Stroke selectable by magnet.
- Can be connected in parallel.
Available colors: black - gray - white (at your choice).

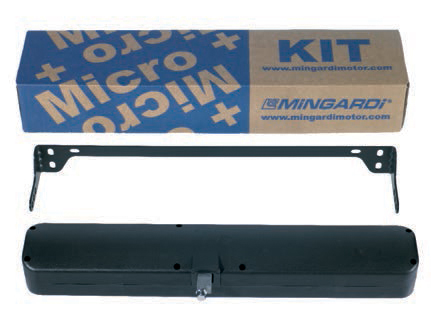

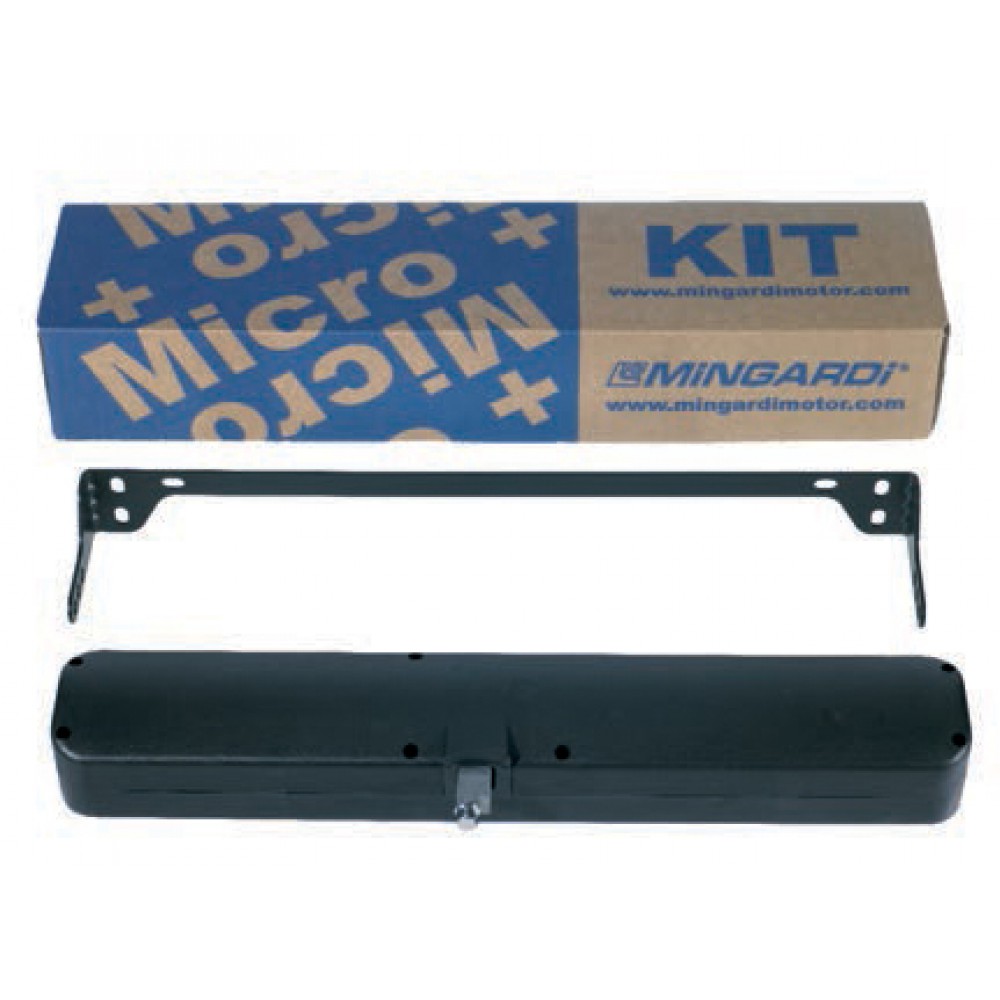

The Micro KIT version includes fixing accessories for top hinged and bottom hinged windows.
Micro Kit Mingardi actuator technical features

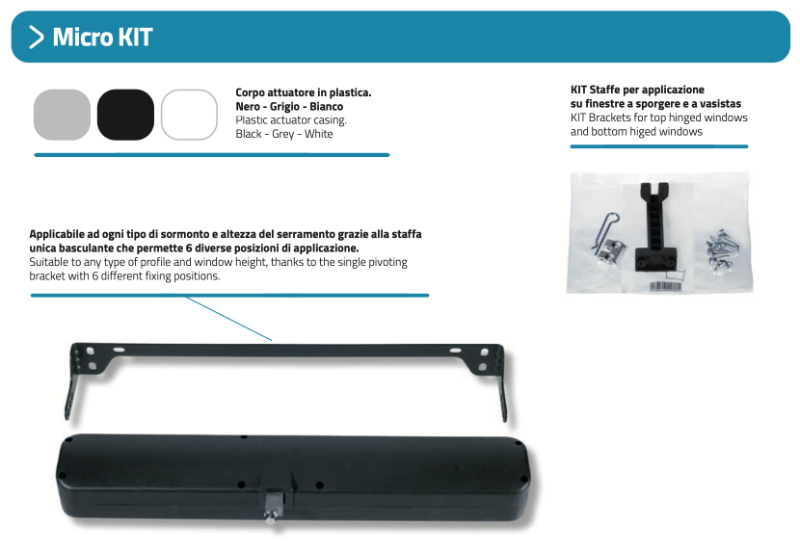

- Applicable to any type of overlap and window height thanks to the single tilting bracket that allows 6 different application positions;
- High thrust force thanks to the double link chain;
- Maximum flexibility in stroke adjustment;
- Degree of protection: IP 20;
- Closing - opening limit switch: electronic;
- Color: black, gray, white (your choice).
- Pushing force - attraction: 250N up to 300mm (200N) up to 400mm.
Technical data*
| Description |
Voltage |
Thrust Traction |
Race |
Absorption Max |
Speed Min |
| Micro Kit max 400mm |
230V ~ / 50Hz |
max 250N |
max 400mm |
130W |
ca. 25mm / s |
* The performance values shown in the table are verified at a temperature of -10 ° C / + 40 ° C, with a maximum relative humidity of 60%.
