Wheel 1 Bearing Groove V Internal Support Sliding Gate Combiarialdo
The

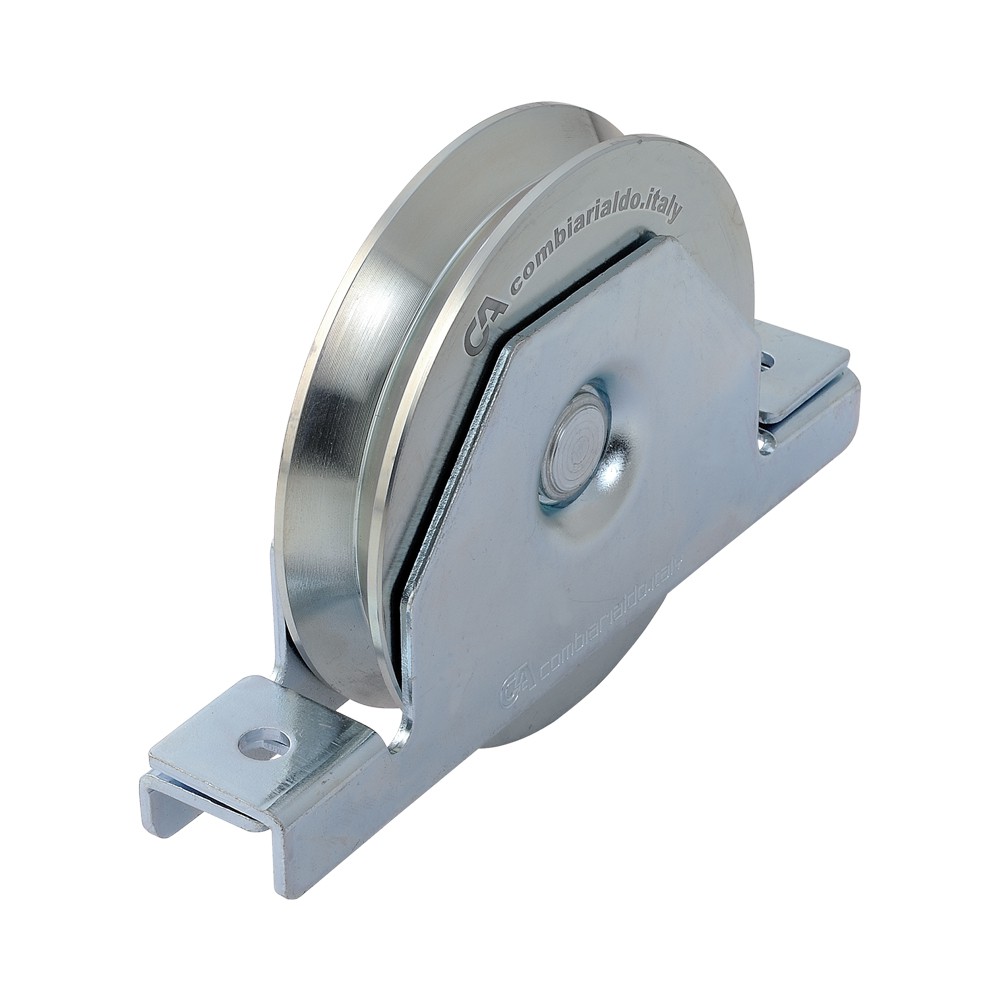

1 bearing V-groove wheel with internal support for sliding gate is a component designed to ensure the smooth movement of a gate on a V-profile track.
The shape of the groove allows the wheel to adapt perfectly to the
V-section tracks , improving stability and smoothness. It integrates a
ball bearing to reduce friction and facilitate the movement of the gate even with heavy loads.
The
internal support provides a sturdy structure that protects the bearing and ensures a secure attachment to the gate frame.
Choose the

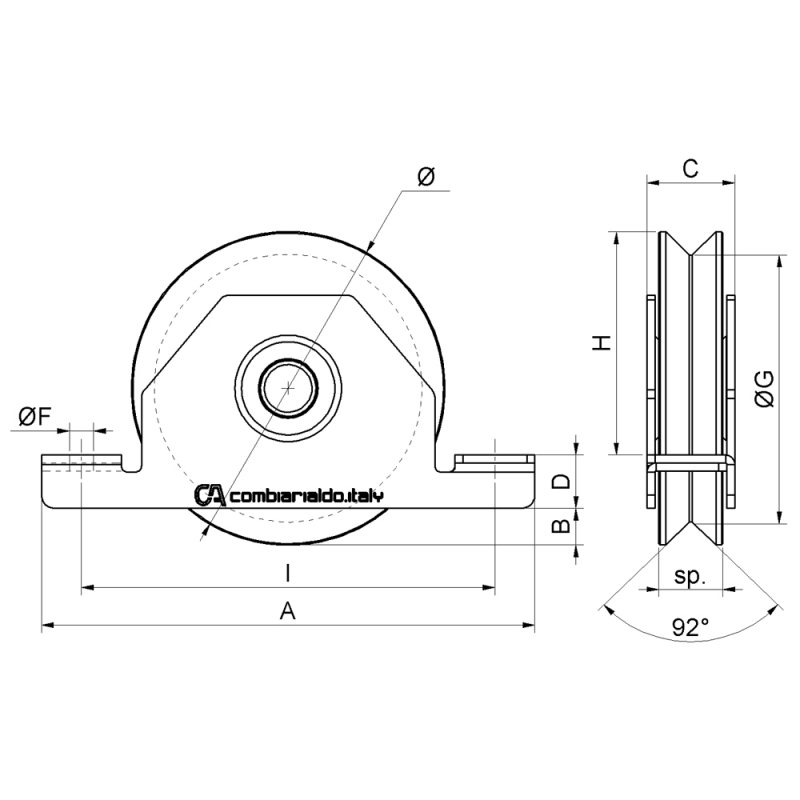

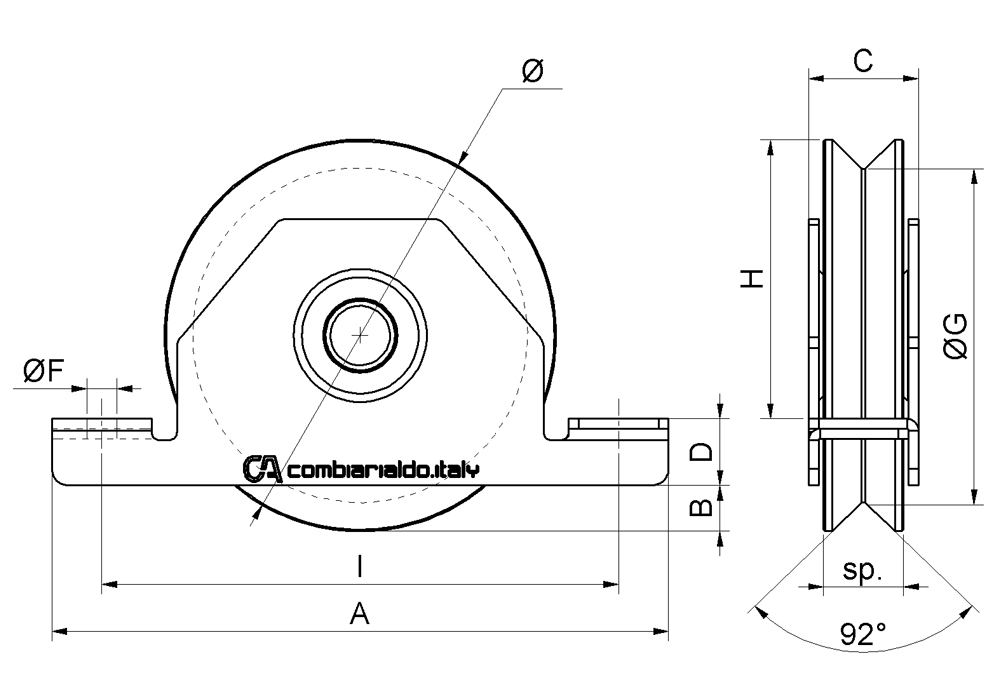

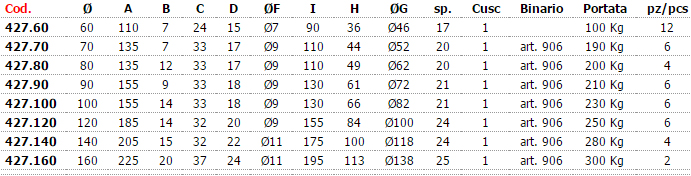

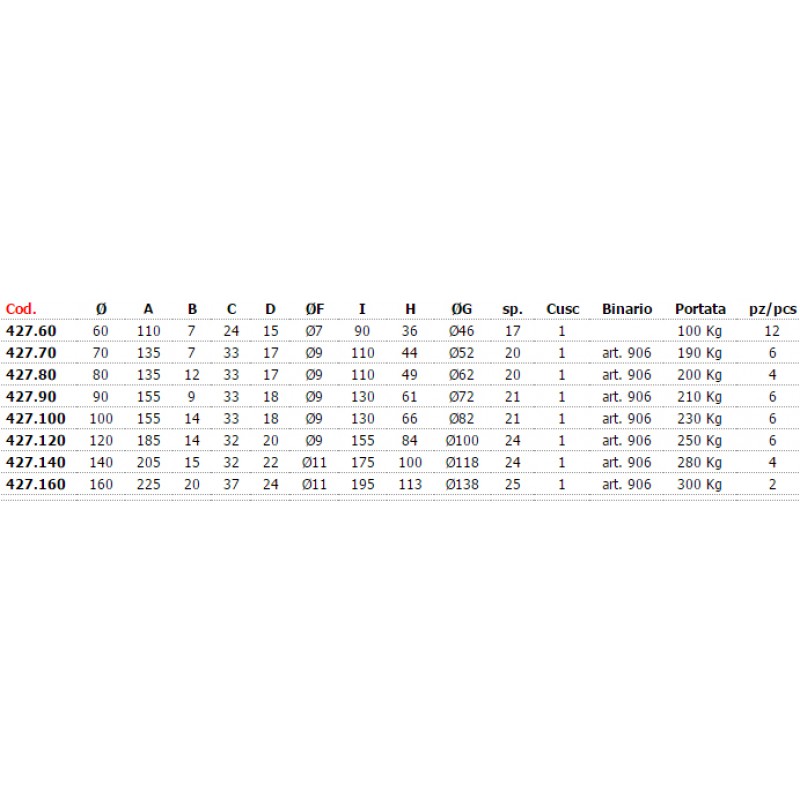

sliding gate wheel with the features you are looking for by selecting the diameter. To choose the wheel with the correct features you can consult the table below.
Features of the Combiarialdo brand sliding gate wheel
Component to be welded: make a weld of suitable size to support the forces in play and with suitable filler material. Adequately reinforce the areas of attachment to the door and/or structure/frame.
Component to be fixed: fix with anchors/bolts of suitable size to support the forces in play. Adequately reinforce the areas of attachment to the door and/or the structure/frame.
Ball bearing: Single row radial ball bearing with sliding seals (2RS). Maintenance-free.
